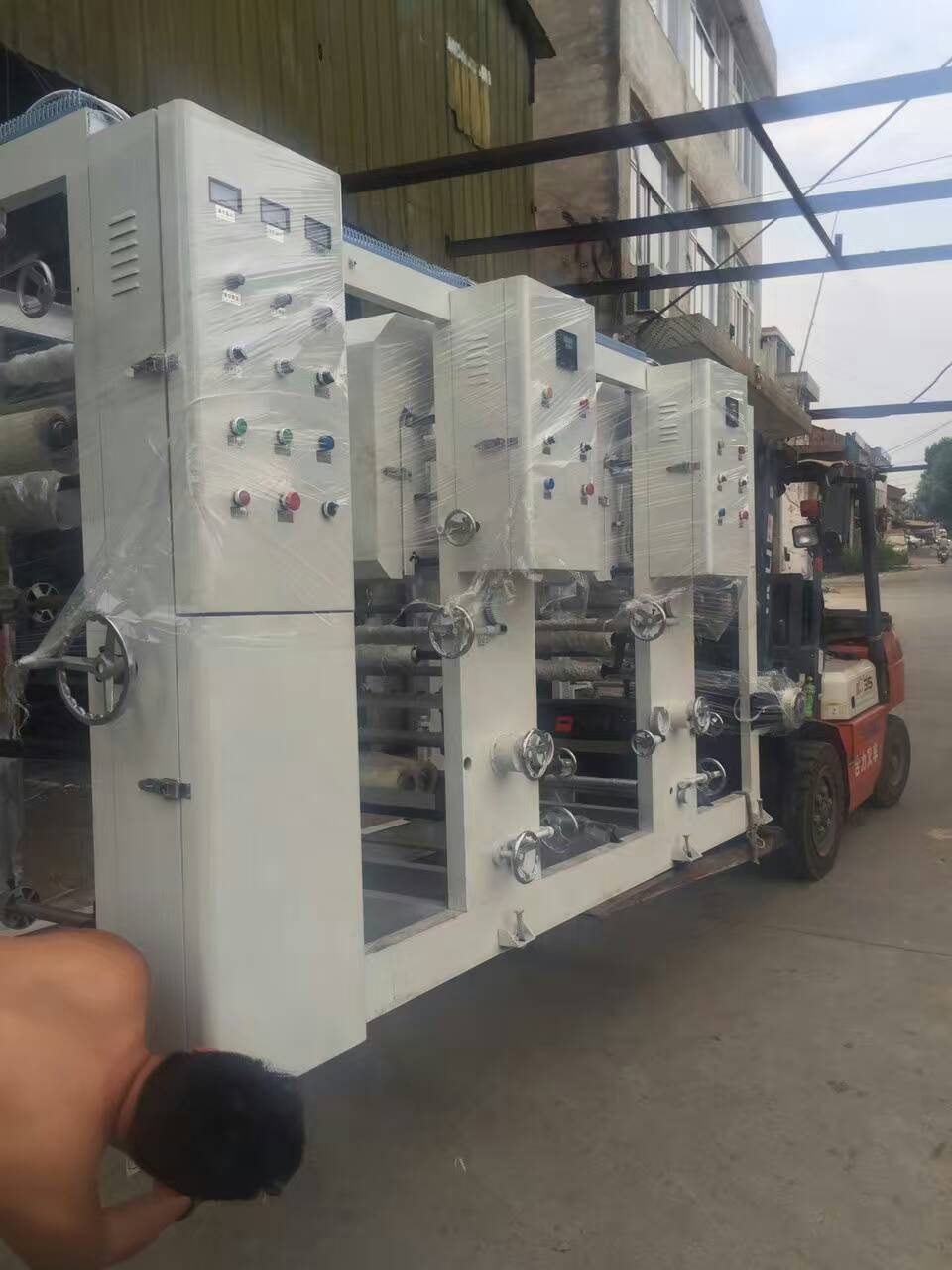

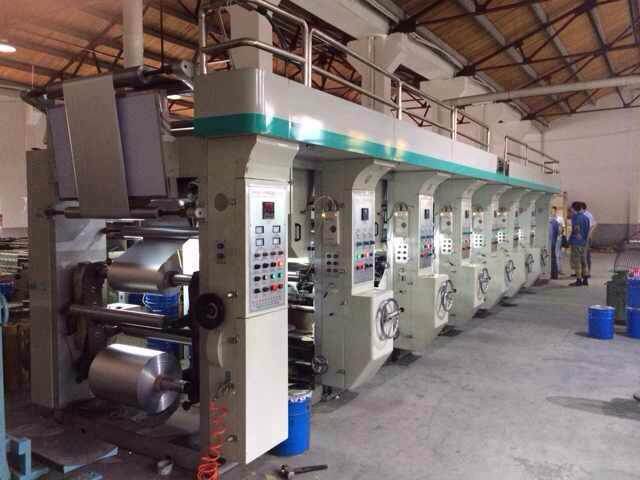

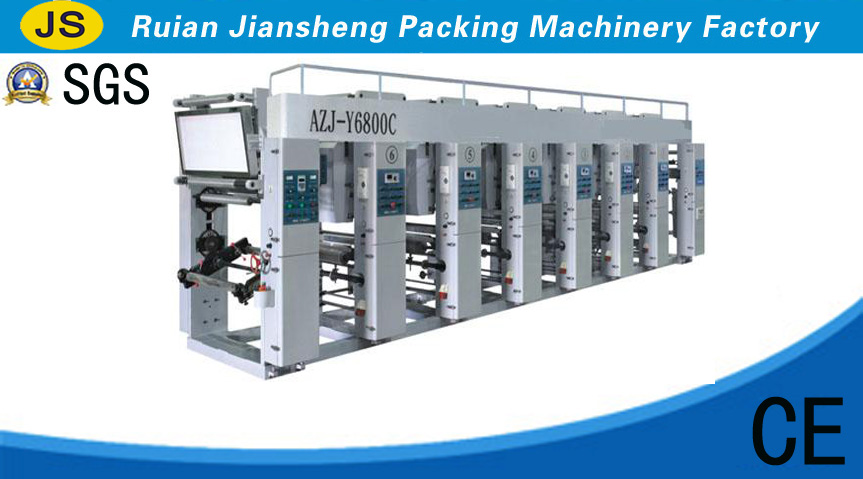

Model DFASY600-1000 Series High-speed Computer Gravure Printing Machine
Model DFASY600-1000 Series High-speed Computer Gravure Printing Machine Download Email Print this Page
Products Name :Model DFASY600-1000 Series High-speed Computer Gravure Printing Machine
Specifications

This machine is suitable for printing roll plastic, film, OPP,nonwoven cloth, PVC,thin leather, paper,aluminum foil, cloth and various soft packages with excellent Performance and it is a kind of ideal printing equipment for wine box, shoe bag and vest bag.

Main Technical Variables:

Model of machine
DFASY-600
DFASY-800
DFASY-1000
Width of Printing
600mm
800mm
1000mm
Printing Speed
10-120m/min
10-120m/min
10-120m/min
Version Accuracy
<0.15mm
<0.15mm
<0.15mm
Length of Printing
200-1250mm
200-1250mm
200-1250mm
Diameter of Roll
600mm
600mm
600mm
Total Power
18kw
21kw
24kw
Outline Dimension
8800*1400*2000mm
8800*1600*2000mm
8800*1800*2000mm
