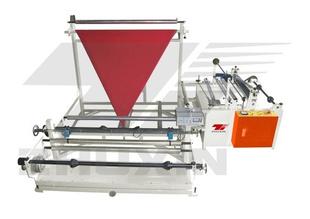

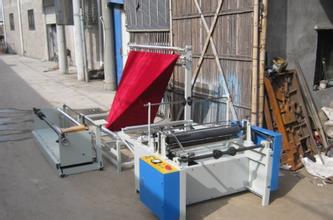

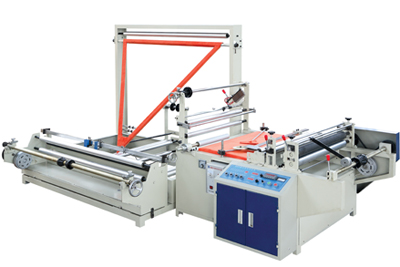

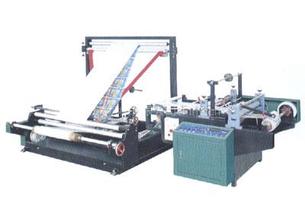

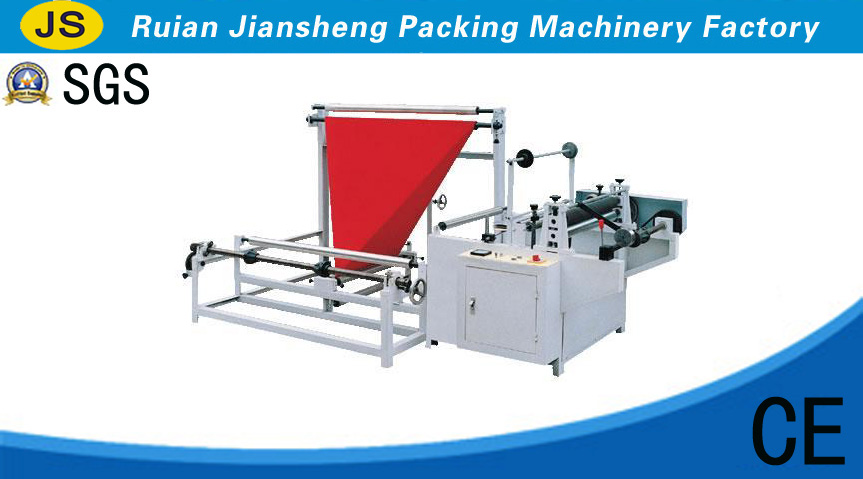

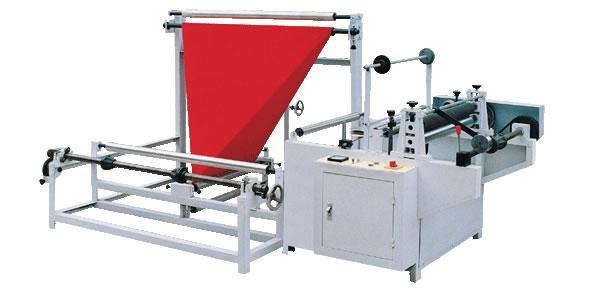

ZB Folding-side and Rolling Machine

ZB Folding-side and Rolling Machine Download Email Print this Page

Products Name :ZB Folding-side and Rolling Machine

Specifications

Technical parameter

Model	1200	1400	1600	1800
Max.Making width	1200mm	1400mm	1600mm	1800mm
Rollout speed	20-100m/min	20-100m/min	20-100m/min	20-100m/min
Max.Diameter of rolling	800mm	800mm	800mm	800mm
Electro-power	1.5kw	1.5kw	1.5kw	2.2kw
Complete weight	400kg	500kg	600kg	700kg
Overall dimension(LxWxH)	1600x1250x1350mm	1800x1350x1450mm	2000x1450x1550mm	2200x1550x1850mm
