YMQ-180 die-cutting machine
YMQ-180 die-cutting machine Download Email Print this Page

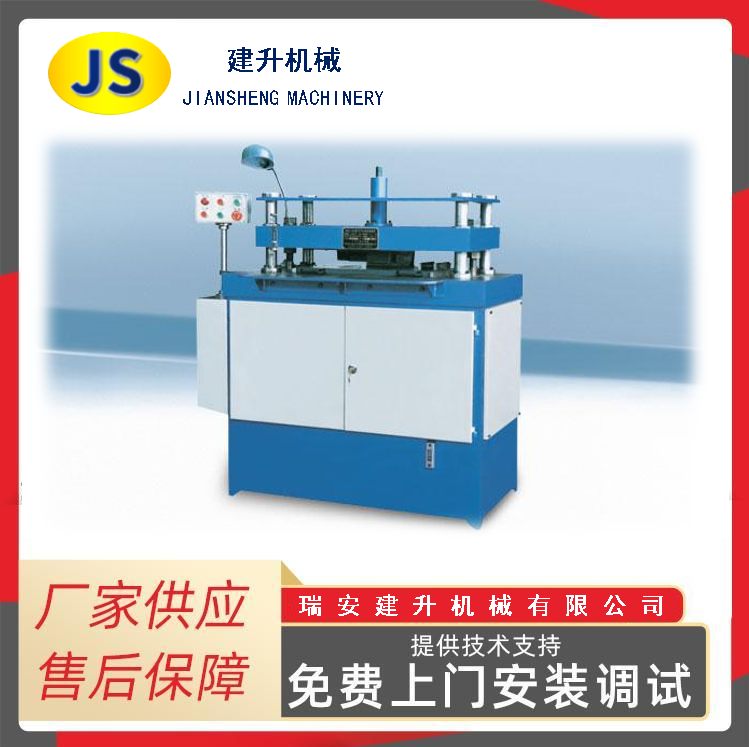

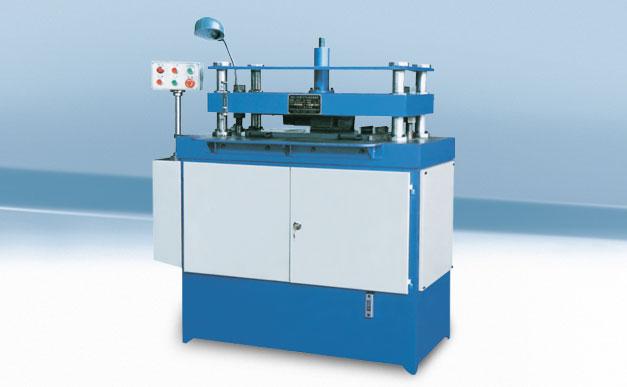

Products Name :YMQ-180 die-cutting machine
Specifications
Structure features

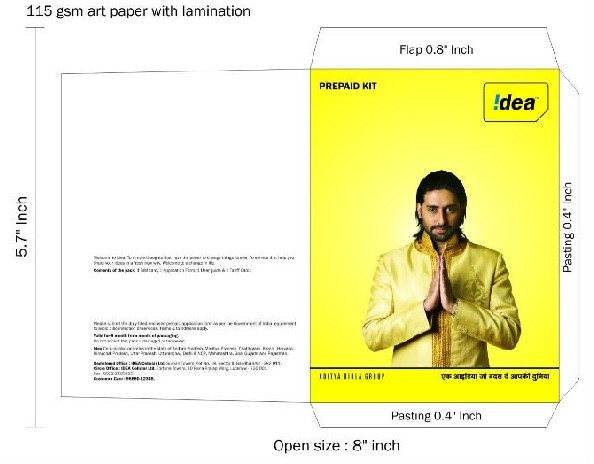

  This machine is mainly used for die-cutting paper blanks of various envelopes, but also suitable for

die-cutting of other materials. This equipment has strong die-cutting pressure and accurate positioning,

precise fine-tuning, automatic rewind device, efficient and labor-saving, stable production; equipped

with automatic stopping device, four columns of stable structure, so that the equipment in the production

 process, stable performance and safe operation.


Technical parameters
   -The effective size of the working table: 820×520mm
    -Maximum working pressure: 12t
    -Oil pump pressure: 8Mpa
    -Total power of the machine: 3kw
    -Machine weight: 1100kg
    -Machine size: 1300×900×1500mm
