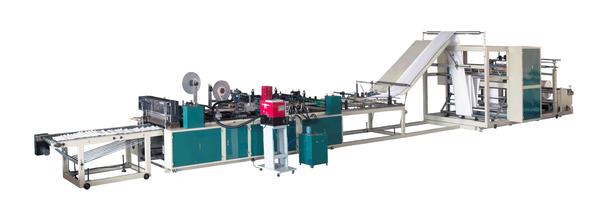

XK-FZ-B Fully Automatic Kraft Air Bubble Envelope Making Machine

XK-FZ-B Fully Automatic Kraft Air Bubble Envelope Making Machine Download Email Print this Page

Products Name : XK-FZ-B Fully Automatic Kraft Air Bubble Envelope Making Machine

Specifications

Technical Parameters:

Machine Model	XK-FZ-B
Max. Material Width	1150mm
Max. Air Bubble Roll Material Width	1100mm
Max. Material Diameter	Φ1000mm
Machine Speed	20-160 pcs/min
Bag Length	100-500mm
Bag Width	150-550mm
Paper Thickness	> 90g
Voltage	380V Three phase four-line
Power	38kw
Machine Weight	2800KG
Machine Dimension	900022002100MM
