XK-FZ-A Automatic Kraft bubble envelope bag making machine
XK-FZ-A Automatic Kraft bubble envelope bag making machine Download Email Print this Page
Products Name :XK-FZ-A Automatic Kraft bubble envelope bag making machine
Specifications
Machine use:

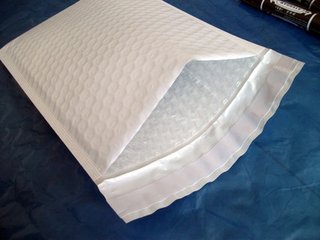

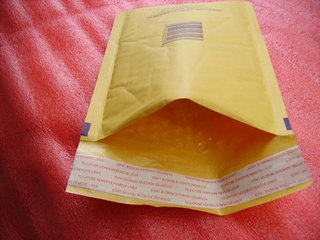

Specially used in the production of kraft paper laminated bags, kraft paper bubble film composite bags, aluminum bubble

 film composite bags


Main Description:

This machine integrates light, electricity and gas machinery in one international leading technology. The products produced

 have stable performance, fast production speed, beautiful appearance, good shockproof effect, and meet the safety standards

 of Europe and America. The introduction of this machine has filled the defects of the existing machines in the market, such as

 inaccurate cutting of the sealing edge, printing off the label, inaccurate positioning of the bag mouth, bubble pressure broken,

and the sealing edge is not firm. This machine has received unanimous praise from the majority of customers, our company has

 a number of patents for this machine, if the same, our company will pursue its legal responsibility.


Machine performance and characteristics:
1. This machine adopts Taiwan Weilun touch display, PLC programmable computer program.
2. Automatic counting, can set any number of bag making, time stopping and resuming machine.
3. Any fixed length, color coding tracking and positioning
4. Automatic correction control of paper discharge
5. The machine comes with printing and, composite folding and gluing function
6. This machine adopts heating compound.


Main technical parameters:
Machine model: XK-FZ-A
Maximum width of substrate: 1150mm
Maximum width of bubble film: 1100mm
Max. discharge diameter: Φ1000mm
Bag-making speed: 20-80 pcs/min
Bag-making length:100-500mm
Bag-making width: 150-550mm
Paper thickness: > 90g
Power supply:380V
Total power:38kw
Machine weight: 2600KG
Machine size: 8000*2200*2100MM
