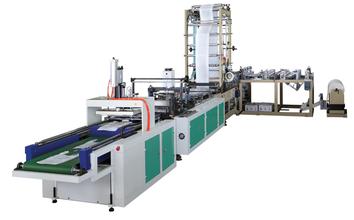

Performance and characteristics. 1. This machine adopts Taiwan touch screen computer monitor, PLC programmable computer program. 2. Automatic counting, can set any whole number to stop. 3. Any fixed length, printing color code tracking and positioning, no material automatic stop. 4. High pressure electrostatic processor, automatic constant temperature and temperature control table. 5. Can control automatic pneumatic portable punching mouth. 6. Put material magnetic powder manual tension control, automatic correction control. 7. This machine adopts all-round ultrasonic welding, bag mouth folding welding, bag edge welding, automatic non-woven bag making The bag making machine is fast, easy to operate, firm welding, beautiful and elegant.
Machine use. The machine is suitable for raw materials for non-woven fabric, can process a variety of different specifications, different shapes of non-woven bags. And according to customer requirements, the production of special lace bags such as wave type, color can be customized. Can be fully automatic It can make flat bags, gift bags, garment bags, hand bags, shopping bags, etc.
Main technical parameters: Machine model: XK-F600, XK-F700, XK-F800 The maximum length of bag making: 600mm, 700mm, 800mm Max. flat bag making width: 560mm, 660mm, 760mm Bag-making speed：30-60pcs/min, 30-60pcs/min, 30-60pcs/min Maximum substrate width: 1300mm, 1500mm, 1700mm Total power: 17kw, 19kw, 21kw Machine weight: 2000kg, 2100kg, 2400kg Air pressure: 2MPa, 2MPa, 2MPa Material thickness: 30-70g, 30-70g, 30-70g (gram) Maximum substrate diameter: 800mm, 800mm, 800mm Voltage ：220V/380V、220V/380V、220V/380V Machine size ：7000×1800×2300mm、7000×1900×2300mm、7000×2000×2300mm
