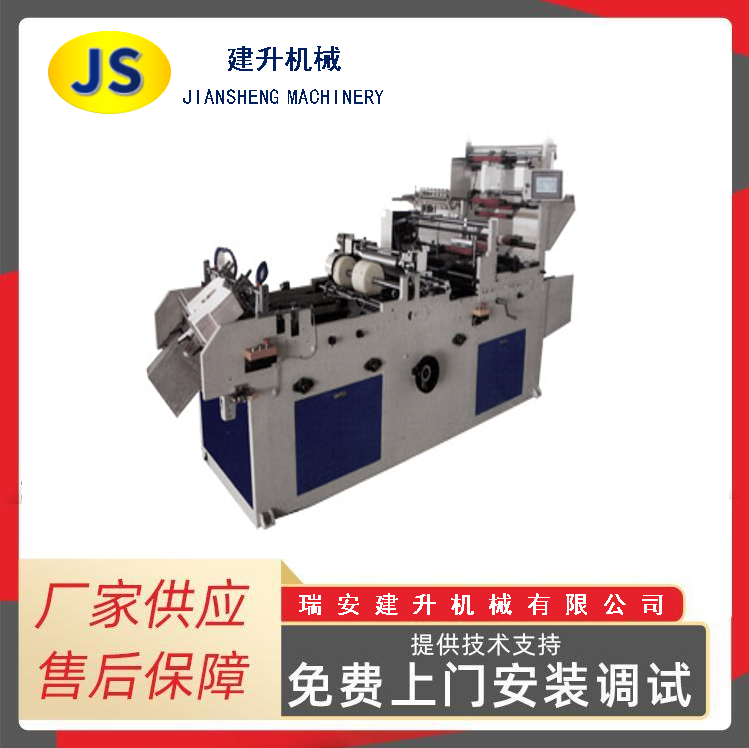

Uses. High-precision full-automatic pair of lines to paste the window machine, through the continuous efforts of our R & D staff, the introduction of foreign technology, the use of imported materials and computer components, the latest development, is now the first manufacturing unit in China. The machine was introduced to replace the difficulties of cutting corners, pressing lines, aligning lines and pasting films by manual before for high-grade underwear boxes and other gift boxes. It takes feeding paper, precision positioning, gluing, film length cutting, corner cutting on both sides, line pressing, especially line laminating, all of which are controlled by automation with humanized design to meet your required requirements. This machine is easy to debug, with high accuracy of line pairing and strong adaptability, which is the ideal equipment for 90-degree window lamination of various high-precision paper boxes. Customized according to customer requirements to press double lines or with hot stamping.
Main technical parameters. Equipment model: TC-650 type window sticking machine 1、Paper specifications 500×600(mm)-200×200(mm) 2、Adapted to the gram of paper 200-450g / ㎡ cardboard 3、Working speed 3000-4500 sheets / hour 4、Power supply voltage 380v/50Hz (three-phase) 5、The machine power 6.5KW 6、Weight of the machine 2000KG 7、Exterior dimensions L×W×H: 5×1.1×1.2m
