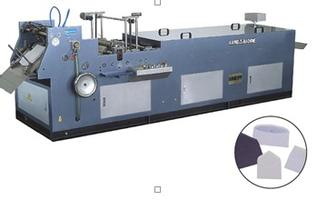

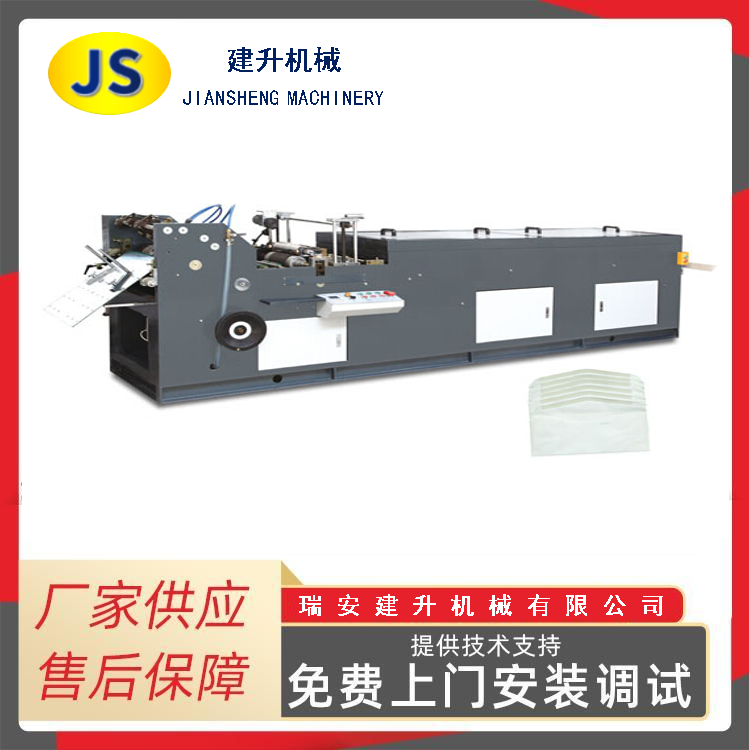

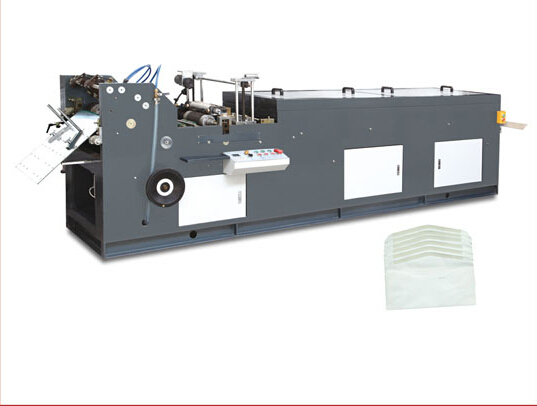

TC1080-Type Automatic Window Paste Machine
TC1080-Type Automatic Window Paste Machine Download Email Print this Page
Products Name :TC1080-Type Automatic Window Paste Machine
Specifications

TC-1080 is for gluing and laminating various carton windows. This machine is made of bottom suction paper, precise orientation by pulling pin,

 automatic gluing, transferring re-film station, and then finishing the process by pasting and rolling, and automatic counting. This machine is

easy to adjust, high efficiency, is the ideal equipment for all kinds of carton window lamination.


Model TC-1080
Maximum working speed 6000pcs/h
Applicable paper specification 200x300-650x1080mm
Applicable window size 80x30-300x760mm
Applicable paper grammage 200-1000g/m2
Thickness of film 0.05-0.25mm
Power of main machine 3.0kw
Air pump power 3.0kw
Machine weight 2500kg
Machine size (LxWxH) 5000x1500x1600mm
