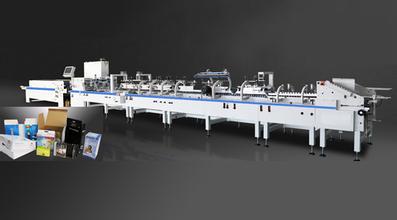

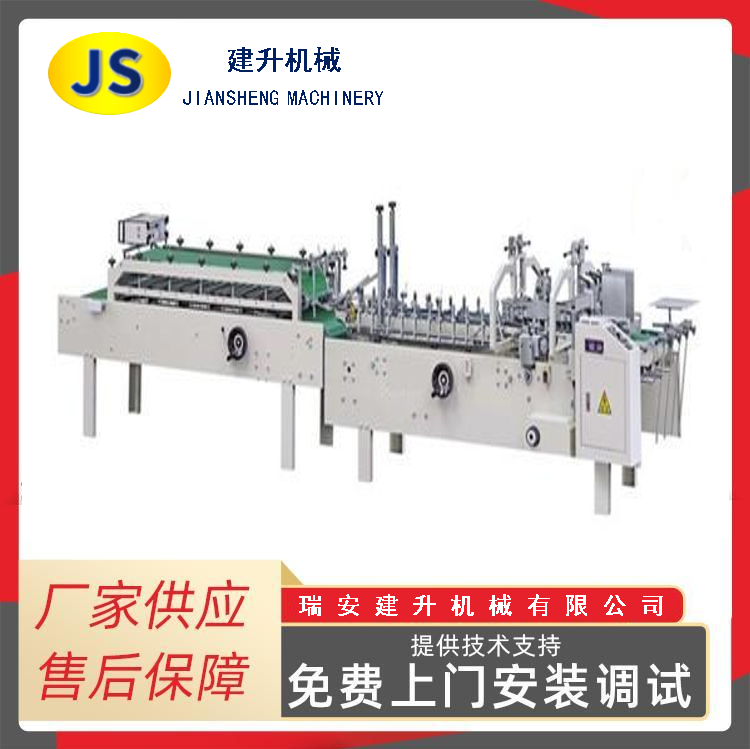

SHH Automatic Gluing Machine
SHH Automatic Gluing Machine Download Email Print this Page
Products Name :SHH Automatic Gluing Machine
Specifications

SHH series automatic box gluing machine has been used and improved by users for several years, and now

it has all the functions of simple box making and high stability, which is recognized by the majority of users.

 It is widely used for cosmetic boxes, cultural goods boxes, medicine boxes, etc. without hook bottom, and

can make more than 35,000 boxes per hour. The narrow belt machine can be customized with a minimum

 box width of only 70mm.




             Sample box

Main technical parameters
Model: A maximum, A minimum, B maximum, B minimum, C minimum, D minimum, F minimum
SHH-800 (wide belt): 700mm, 70mm, 520mm, 110mm, 8mm, 70mm, 51mm
SHH-1200 (wide belt): 700mm, 70mm, 790mm, 110mm, 8mm, 70mm, 51mm
SHH-800 (Narrow belt): 700mm, 70mm, 520mm, 70 mm, 8mm, 70mm, 35mm

Technical features
Linearity: 0~220m/min continuously adjustable
Applicable paper: 220~800g/m² cardboard
Gluing basic form: one side paste, both sides can be
Paper feeding method: automatic continuous paper feeding
Adhesive: Solvent type
Required power: AC220V, 3.5KW
Weight: 1500kg
External dimension: 5300×820(1250)×1300mm
Counting range: 0~999999 (automatic counting)
