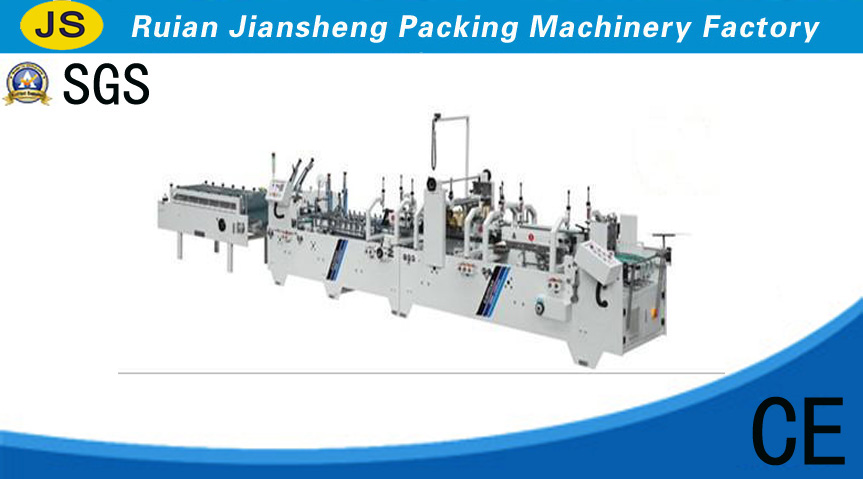

SHH-800AG
|
Type of boxex |
(Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
| No-edged bottom box | 700mm | 70mm | 600mm | 110mm | 8mm | 70mm | 51mm |
| Edgde Bottom box | 700mm | 160mm | 460mm | 180mm | 9mm | 90mm | 85mm |
SHH-1200AG
|
Type of boxex |
(Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
| No-edged bottom box | 700mm | 70mm | 800mm | 110mm | 8mm | 70mm | 51mm |
| Edgde Bottom box | 700mm | 160mm | 700mm | 180mm | 9mm | 90mm | 85mm |
Characteristics
| Linear velocity | 0～220m/min |
| Suitable paper quality | 220～800g／m² cardpaper and E wave corrugated paper |
| Paste box basic form | One-side edge pastes, two-side edge pastes. |
| Feeding way | Automatically and continuously feeding |
| Adhesive | Solute type |
| Needed power | AC380V 7KW |
| Weight | 2500KG |
| Overall Size | 8900 ×1100(1300)× 1350mm |
| The scope of Count | 0～999999 |
