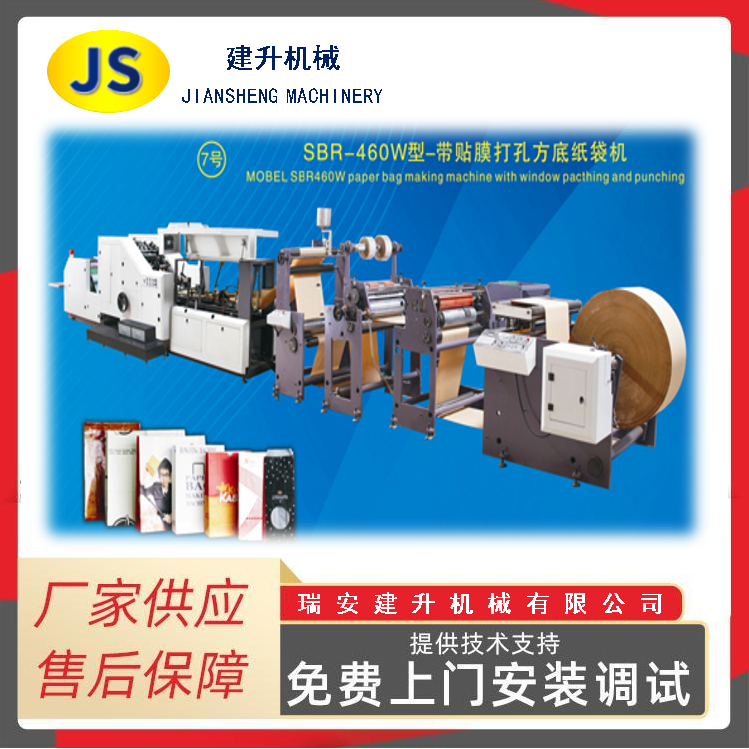

Structure features 1. The paper bag machine with square bottom is composed of material release device, film application device, hole punching device, forming device and material receiving device. In other words, the original discharge device is separated into the film window gluing part and film part, plus a group of punching device. 2. Touch screen human-machine interface is introduced, which is easy to correct and fine-tune. Alarm and working status can be displayed on the screen, easy to operate and maintain. 3. Equipped with PLC centralized control system from Kunlun Tongtai and SICK photoelectric correction from Germany, it tracks the prepared printing materials, minimizes the adjustment and presetting time, and improves the production efficiency. 4. Human-oriented safety protection, the whole house is designed to ensure the safety of the operator. 5. Air expansion shaft hydraulic loading system, chuck, hydraulic loading/unloading system 6. Automatic unwinding constant tension control, EPC network guide with inverter pushing system, motor, minimizing the adjustment time of network alignment. 7. High speed design to ensure success: suitable paper range production, capacity up to 30-150pcs/Min. increase unit production capacity and higher profit. 8. Original German Schneider electrical system to ensure better stability and reliability, perfect after-sales service, trouble-free for customers.
Technical parameters Model: SBR-460W Width of Paper: 600-1300MM Cutting Length of Bag: 270-520MM Width of Paper Bag: 220-450MM Lenght of Paper Bag: 225-470MM Width of Bag Bottom:60-180MM Paper weight: 60-180MM Diameter of Paper Roll: 1500MM Internal Diameter of Roll Core: 76MM Max. Speed: 150PCS/MIN Power: 15KW Machine Weight: 9000KG Machine SizeOverall Dimension: 9600MM*2500MM*1800MM
