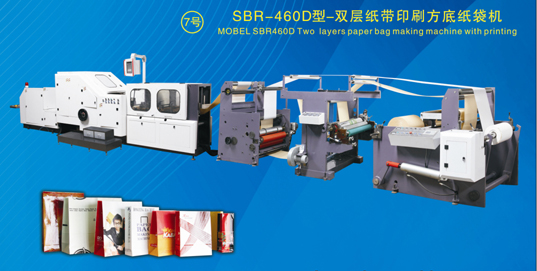

Structure features: 1. The double-layer paper bag printing square bottom bag-making machine consists of discharging device, printing device, forming device, receiving device (and some auxiliary equipment). 2. Touch screen man-machine interface is introduced, which is easy to correct and fine tune. Alarm and working status can be displayed on the screen, which is easy to operate and maintain. 3. Equipped with PLC centralized control system from Kunlun Tongtai, Germany SICK photoelectric correction, tracking accurate printing materials, minimizing adjustment and presetting time, improving production efficiency. 4. Human-oriented safety protection, the whole house is designed to ensure the safety of the operator. 5. Air expansion shaft hydraulic loading system, chuck, hydraulic loading/unloading system 6. Automatic unwinding constant tension control, EPC network guide with inverter feeding system, motor, minimizing the adjustment time of network alignment. 7. High speed design to ensure success: suitable paper range generation, capacity up to 30-150pcs/min and higher. Increase unit production capacity and higher profits. 8. Original German Schneider electrical system ensures better stability and reliability, perfect after-sales service, trouble-free for customers.
Technical parameter Model:SBR-460D Width of Paper:600-1300MM Cutting Length of Bag:270-520MM Width of Paper Bag: 220-450MM Length of Paper Bag:225-470MM Width of Bag Bottom:60-180MM Paper weight:60-180MM Diameter of Paper Roll:1500MM Internal Diameter of Roll Core:76MM Max.Speed:150PCS/MIN Total machine powerPower:15KW Machine Weight:9000KG Machine SizeOverall Dimension:9600MM*2500MM*1800MM
