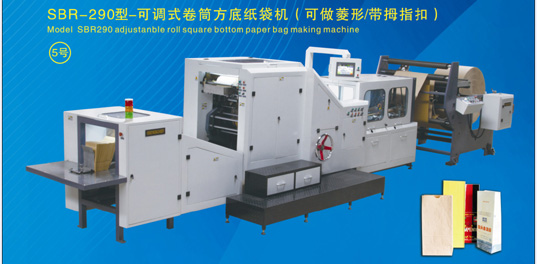

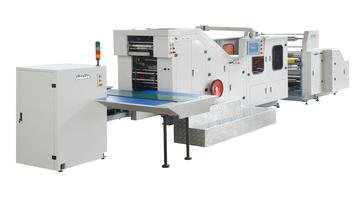

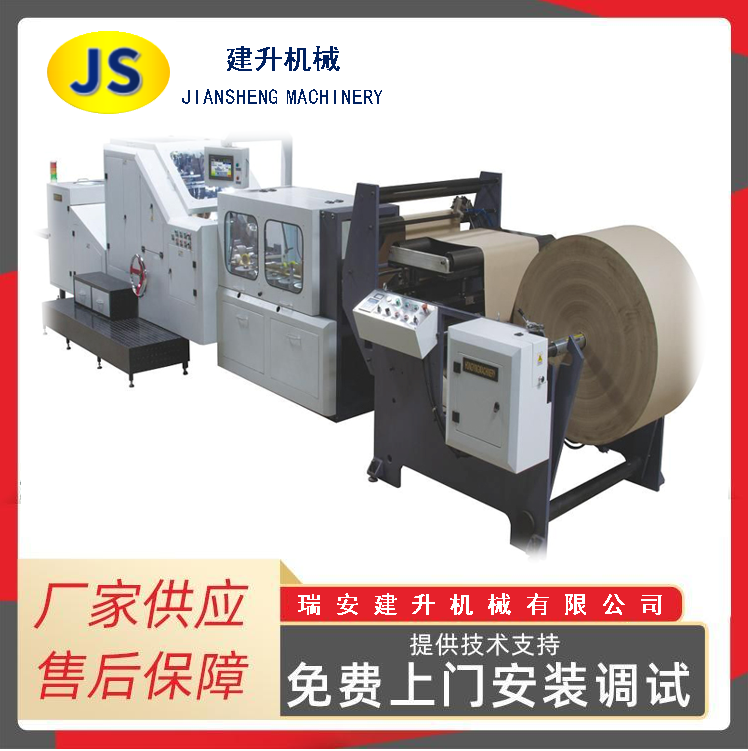

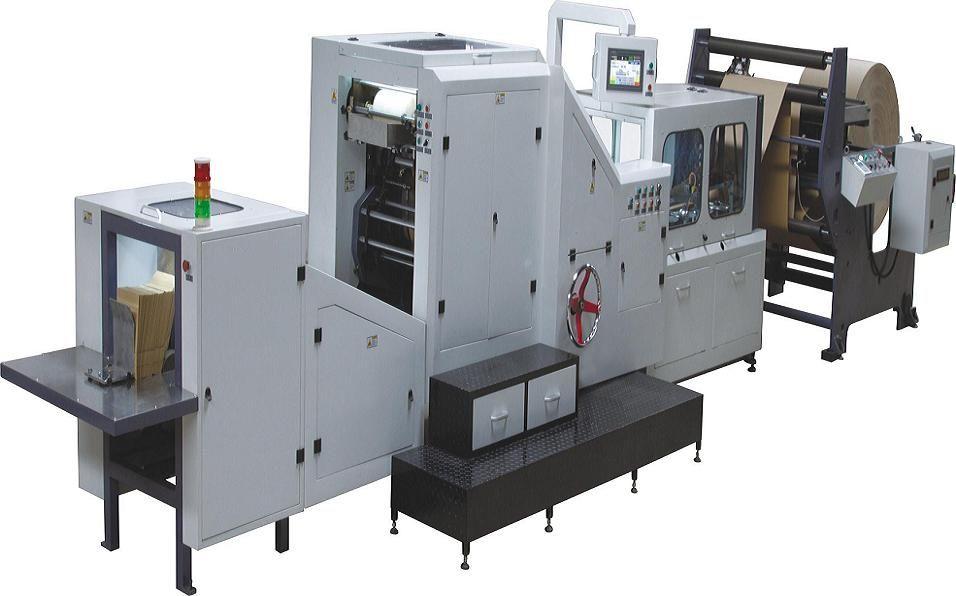

SBR-290 Adjustable Roll Square Bottom Paper Bag Machine
SBR-290 Adjustable Roll Square Bottom Paper Bag Machine Download Email Print this Page
Products Name :SBR-290 Adjustable Roll Square Bottom Paper Bag Machine
Specifications

SBR-290 adjustable roll bottom paper bag machine, it has the advantages of fast speed, high production

efficiency, large adjustment range, comprehensive domestic similar products shortcomings and improve the

 new equipment, this equipment is the original color or printing good roll paper by the machine once

completed side glue, folded into micro, paper tube cutting, bottom glue, bag bottom forming, out of the bag,

 the whole machine by the computer central control system control, touch screen The whole machine is

 controlled by computer central control system, touch screen display, servo motor control the length of

 paper bags, can produce a variety of specifications of paper bags, the fastest per minute up to 220 bags,

greatly reducing the cost of labor, is the first choice of paper bag production and processing equipment.


Main structural features.
1、The raw material loading and unloading adopts hydraulic lifting structure, and the unwinding adopts automatic tension control.
2、Italy ZATOR is used for side glue.
3、Italy SELECTRA is used for edge correction, which is referred to as Italy ST in China.
4、The paper tube former contains thumb function (located below the forming template)
5、No material detection automatic stop
6、The center clamping finger, drum wheel jig, and drum wheel mechanical finger all use spider type synchronous adjusting mechanical design, which can greatly reduce the adjustment time of changing the size of the machine.
7、Adopt German KEB servo with German SICK photoelectricity, precise tracking of printing materials.
8, equipped with automatic sobbing supply system, clogging alarm system

Technical parameters.
Paper width: 320-930mm
Cutting length:230-580mm
Paper bag width:80-290mm
Paper bag length:155-505mm
Bottom width:60-160
Paper grammage:60-180gsm
Maximum diameter of discharge:1500mm
Inner diameter of paper core:76mm
Max. bag-making speed:220pcs/min
Power:15kw
Machine weight:8500kg
Machine size:8600mm*2500mm*1800mm
