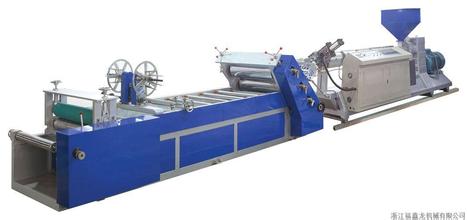

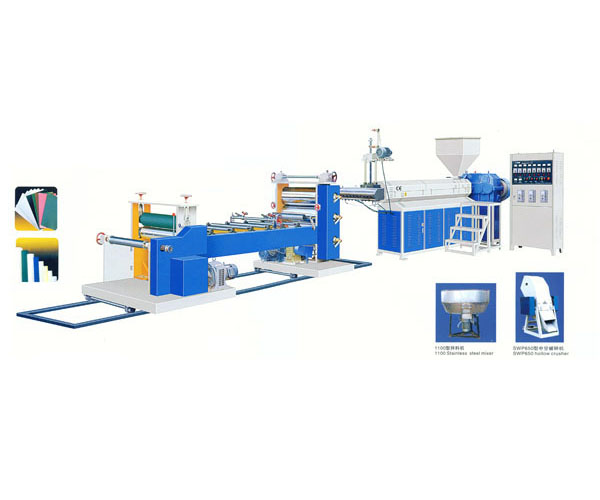

SB-680, 1000, 1400 type plastic sheet machine is the best machine for producing PP sheet, high impact polystyrene,
polyethylene and PE sheet with excellent quality, beautiful shape, reliable performance and fast production speed.
Main technical parameters
Maximum
output
150kg/h
Cutting edge winding machine
power
3Kw
Calendering roller spacing range
0-20mm
Extruder
4200×1600×2100
Screw diameter
90mm-110mm
Barrel heating power
16.5kw
Calendering roller surface
length
750mm
Calender
1100×1400×1900
Length to diameter ratio
30:1
Screen changer heating power
6kw
Number of calendering rollers
3个
Electrical console
9100×400×1860
Die opening width
730mm
Die heating power
6.6kw
Extruder motor power
30kw-45kw
Trimming and winding machine
1100×1400×1450
Thickness of die opening
0.3-2mm
Water consumption
10m3/h
Screen changer motor rate
1.1kw
Weight of the whole machine
4.5T
Calendering roller diameter
270mm-400mm
Machine size
9.6×1.8×1.5（L*W*h)
Calender motor power
3kw
