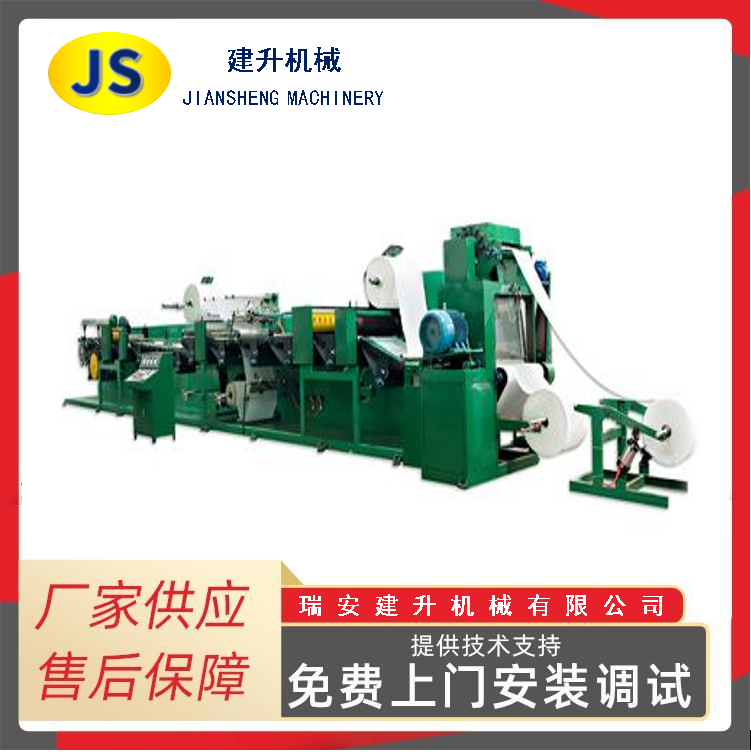

Product details 1. Power supply: three-phase 380V, 50HZ 2. Total power: 75KW (excluding glue machine and air compressor) 3.Dimension(L×W×H):17000×3200×2700mm 4. Design speed: 100m/min (m/min) 5.Qualification rate:≥96%(without glue machine, material reason)
Features and performance 1.Can produce 900X600mm and other sizes. 2. SAP mixing imposed, SAP volume controlled by frequency conversion motor. 3、With high efficiency crusher. 4, uniform wood pulp forming. 5、The products are formed and output in tri-fold arrangement. 6、The transmission system adopts the combination type of closed gear box, universal coupling and synchronous belt. 7, broken material, lack of material detection alarm, change the material to receive the scrap reject. 8、 Splicing device: each volume of material is equipped with material end cutter, material splicing can be done manually or automatically 9、 Unwinding device. 1） Unwinding of non-woven fabric with permeable layer: using core unwinding, with automatic tension control/automatic splicing 2） Unwinding of breathable PE backing film: using core unwinding, with automatic tension control/automatic splicing 10. PLC + touch screen + frequency control system.
