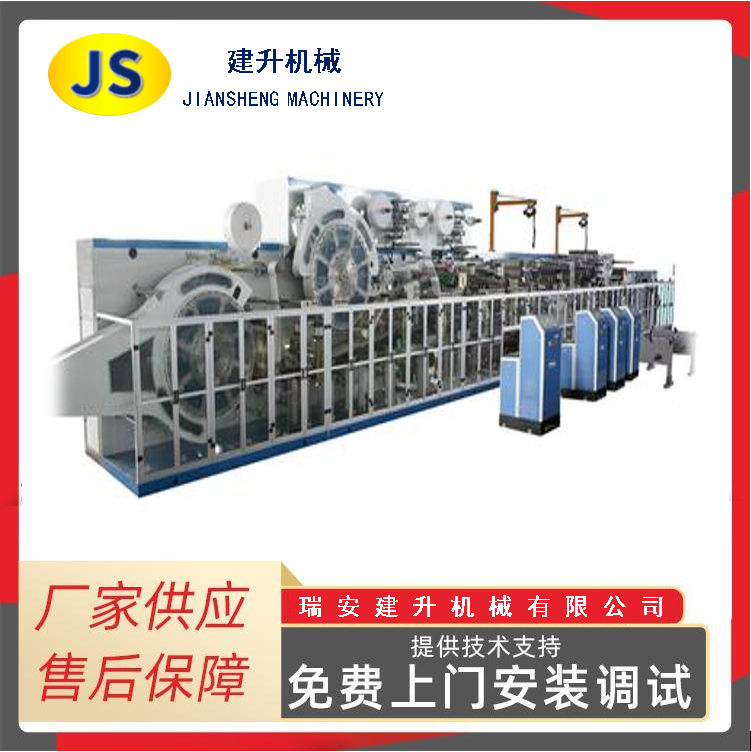

Main technical parameters. Power supply: three-phase 380V,50HZ Total power: 200KW (without glue machine, air compressor) Overall dimension (L*W*H): 29000*3000*3250MM Design speed: 120-150 pieces / min 100m / min (PCS/MIN) Qualification rate: ≥ 96% (without glue machine, material reasons)

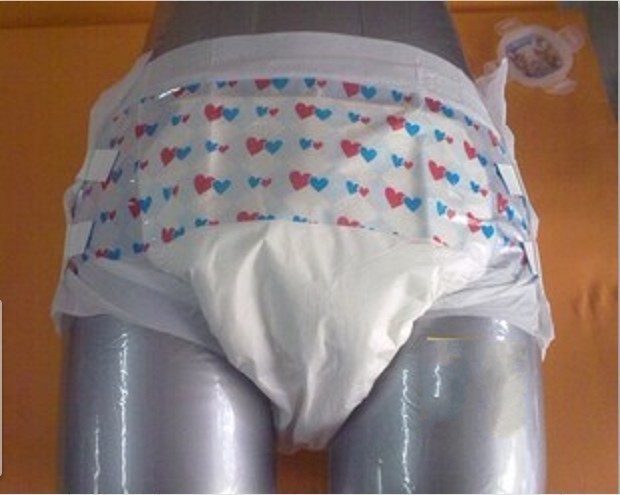

Features and performance. 1. Can produce large and medium size specification products 2. polymer mixing imposed 3. With powerful crusher 4. Two-way molding 5. With elastic waistband, front waist patch, side waist patch, three-dimensional circumference, leg rubber infusion mechanism 6. Three-fold arrangement output after product forming 7. Broken material, lack of material detection alarm, change the material to pick up the scrap reject 8. Transmission system adopts closed gear box, universal coupling, synchronous belt combination type, high synchronization, stable transmission. 9. The product forming and positioning processes are all equipped with electric differential speed changer, which can be adjusted synchronously without stopping. 10.PLC+touch screen+inverter control system 11. Splicing device: each roll of material is equipped with material tail-end cutter, material splicing can be done manually or automatically. 12. Unwinding device. (1) Unwinding of water-repellent nonwoven fabric: using core unwinding, with automatic tension control/automatic splicing (2) Hydrophilic nonwoven unrolling: using core unrolling, with automatic tension control/automatic splicing 3）Unwinding of PE base film: Unwinding with core, with automatic tension control/automatic splicing (4) Deflector unwind: Unwinding with core, with automatic tension control/automatic splicing
