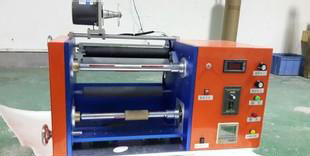

Scope of application: suitable for barcode ribbon slitting operations
Effective working width：1200mm
Max. winding diameter：Φ150mm
Max. discharge diameter：Φ600mm
Maximum mechanical speed：200m/min
Main machine size：W2350mm×L1080mm×H1350mm
Main machine structure
Frame wall plate type: 15mm steel plate
Discharging seat: One-piece discharging seat with air rising shaft
Correction mode: manual correction
Discharge shaft: 3 inch air shaft
Discharge brake: pneumatic brake
Tension mode: manual control
Winding mode: center winding
Winding shaft: Φ12.7mm Φ25.4mm
Winding tension: magnetic powder tension control coil tension (automatic program design plus frequency control)
Winding axis exchange: 0.37KW motor + reducer with sprocket flip positioning
Electrostatic way: electrostatic bar to eliminate electrostatic treatment
Transmission method: synchronous wheel with imported synchronous belt
