Use

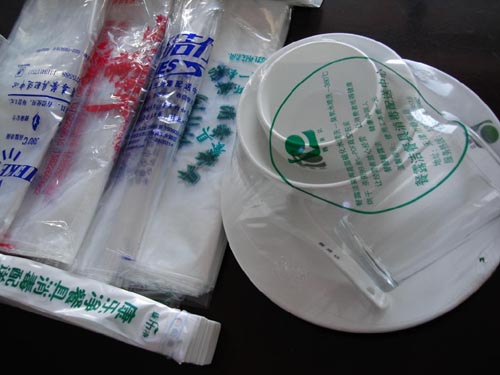

This machine is suitable for the hot cutting of BOPP, OPP, PE and other printed and non-printed plastic films, and is ideal for making sock bags, towel bags, bread bags and jewelry bags.
Performance and features
1、The whole machine adopts microcomputer computer control and stepping motor to drag the material (servo motor control system is optional).
2、Any fixed length, step length photoelectric tracking, accurate and smooth, automatic stop for lost mark.
3、Automatic synchronization on double-sided tape, automatic punching.
4、Automatic counting and settable counting alarm.
5、Heat sealing lace, automatic constant temperature, sealing firm and flat.
Main Technical Parameters
Model:RD-700、RD-800、RD-900、RD-1000
Max. substrate width:700mm,800mm,900mm,1000mm Max. cutting length:50~700mm,50~700mm,50~700mm,50~700mm
Production capacity: 680mm, 780mm, 880mm, 980mm
Total power:40~140pcs/min、40~140pcs/min、40~140pcs/min、40~140pcs/min
Machine weight: 3.6kw, 3.8kw, 4.5kw, 4.7kw
Overall dimension:3500×1100×1400mm、3500×1200×1400mm、3500×1300×1400mm、3500×1400×1400mm
