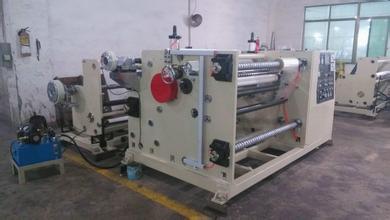

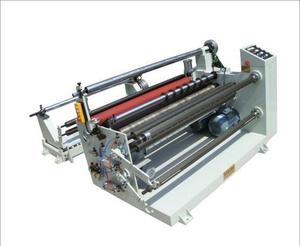

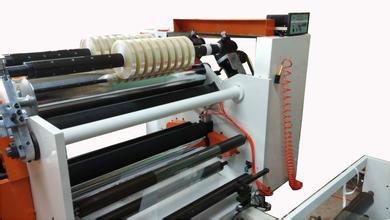

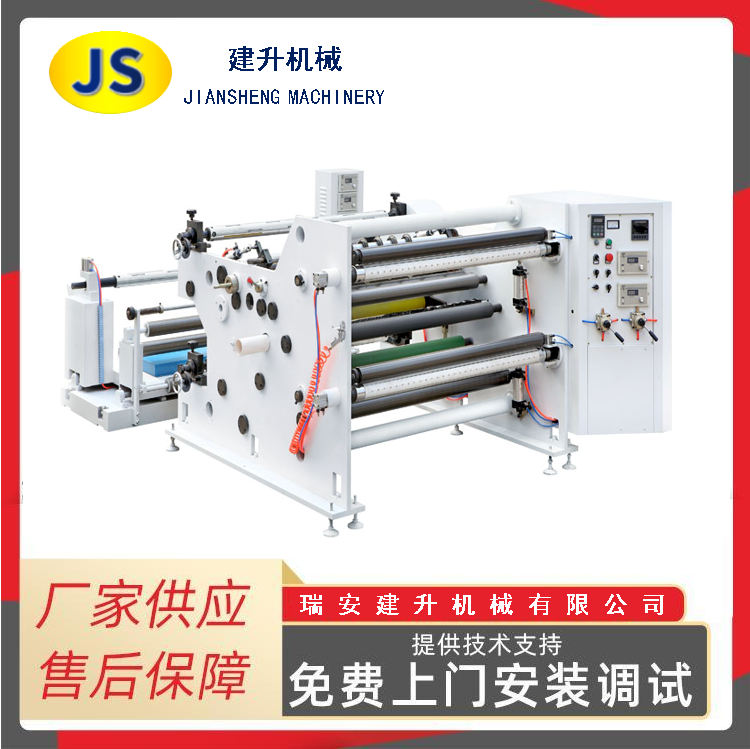

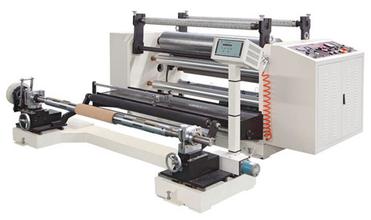

QFJ-B series three-layer laminating rewinding and slitting machine

QFJ-B series three-layer laminating rewinding and slitting machine Download Email Print this Page

Products Name :QFJ-B series three-layer laminating rewinding and slitting machine

Bottom

Return

Specifications

Uses.

This machine is suitable for laminating and rewinding and slitting of various rolls of film materials, self-adhesive,

aluminum foil, non-woven fabrics, photosensitive materials, rolls of paper and other substrates.

Features.
1、Ultrasonic automatic tracking, correction of deflection device.
2、With traction device, magnetic powder tension control.
3、Automatic meter counting and scrap air feeding device.
4, the machine can be equipped with optional Teflon roll for rewinding tape

Technical parameters.
Model: QFJ-B/700, QFJ-B/1100, QFJ-B/1300
Coil width MAX：700mm、1100mm、1300mm
Unwind diameter Max：AΦ800mm、BΦ400mm、CΦ400mm、Φ800mm、Φ400mm、Φ400mm、Φ800mm、Φ400mm、Φ400mm、Φ400mm
Winding diameter Max：Φ420mm、Φ420mm、Φ420mm
Speed Max：10-160m/min、10-160m/min、10-160m/min
Total power ：4KW、5.5KW、5.5KW
Weight：2200kg、2500kg、2700kg
Overall dimension：2700×2100×1350mm、2700×2500×1350mm、2700×2700×1350mm
Minimum width of slitting Min: round knife: 30mm, straight knife: 10mm
Special customized equipment is available according to product requirements.
