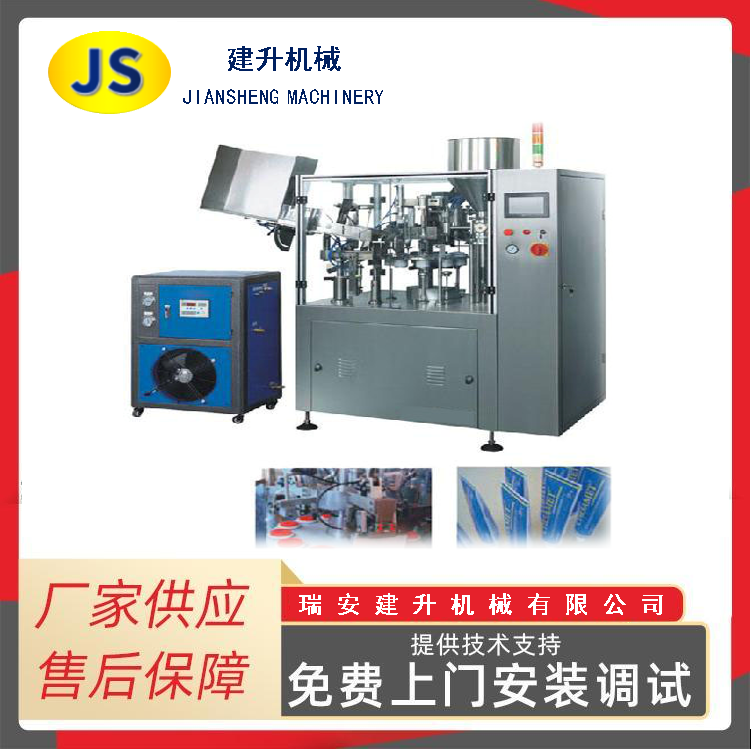

This product is a high-tech product developed by our company with the introduction of foreign advanced

technology and optimized design combined with GMP requirements. It adopts PLC programmable controller

and wonderful touch screen to program the whole machine, which can complete the fully automatic

operation of filling and folding or sealing the edges of ointment, cream, gel and viscous fluid, and marking

the batch number (including production date). It is the ideal equipment for filling and sealing lead, aluminum,

 plastic and composite tubes in the cosmetic, pharmaceutical, food and adhesive industries. The equipment is

 suitable for pharmaceutical, chemical, cosmetic, health care products and other fields.

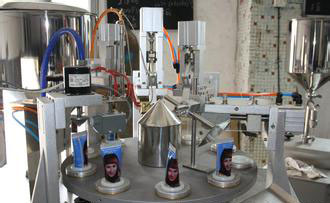

1、The product has 12 stations, you can choose different stations according to different materials and

different molding requirements, equipped with the corresponding robot to meet the requirements of lead

tube, aluminum tube, plastic tube, composite tube filling and folding or filling and sealing, to achieve

multi-use of one machine.

2、Fully automatic completion of the whole process (all processes) of tube supply, marking, tube internal

cleaning (optional), filling, sealing (bending), coding and finished product export.

3、Servo control regulation, filling volume can be easily adjusted on the touch screen with accurate

 measurement.

4、The tube cylinder bin is easily adjusted up and down height by motor according to different hose length.

External reversible filling mechanism, more convenient and neat to fill tube and barrel material.

5、Mechanical linkage visual cursor accuracy level 0.2mm, reducing the range of color difference between

tube body and color cursor.

6、Integration of light, electricity and gas to achieve no tube without filling; lowering air pressure, automatic

 display (alarm); can automatically stop when the tube supply is not in place or open the protective door.

7, the tube inner wall type three-layer instant heater, no damage to the outer wall of the tube pattern case film,

 the product and sealing the tail beautiful.
