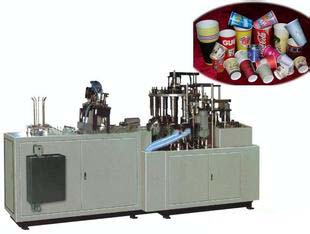

| Main technical data of YQZW-50A paper bowl making machine |
| Paper bowl Size[Capacity] : | 16~~60 OZ (Change molds produce different cups' size) | |
| Paper bowl top diameter: | Min 85mm ~~Max 150mm | |
| Paper bowl bottom diameter: | Min 65mm~~Max 126mm | |
| Paper bowl height: | Min 35mm~~Max 125mm | |
| Paper weight : | 150~~350gsm (g per meter) (Recommend 220~~ 280gsm) | |
| Paper material: | Two-side PE coated Paper | |
| Speed of making paper cups: | 35~~40 pcs per minute | |
| Limite of temperature: | 0~~400 degree | |
| Electric heater power: | 2.7kw | |
| Main motor power: | 2.2kw | |
| Rolling motor power: | 1.1kw | |
| Power source : | 380V 50Hz or 220V 50Hz or other suitable for your power | |
| Whole machine weight: | 1850kg | |
| Appreance size:(long-width-height): | 2950x1600x1600mm | |
| Package box size:(long-width-height): | 3000x1700x1900mm |
