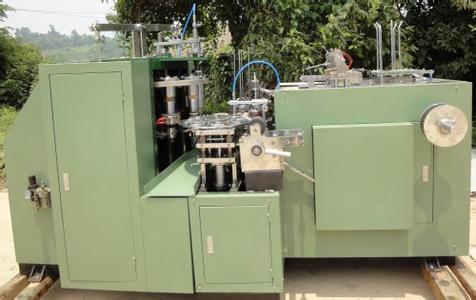

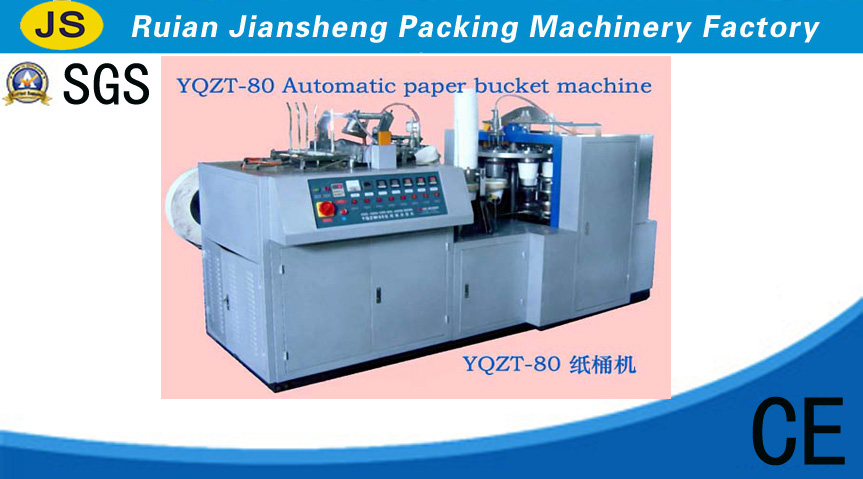

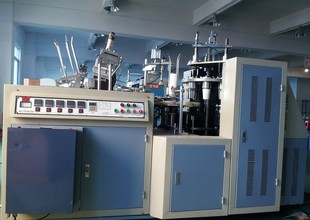

| Main technical data of YQZT-80 paper bucket making machine |
| Paper bucket Size[Capacity] : | 60~~200 OZ (Change molds produce different cups' size) | |
| Paper bucket top diameter: | Min 125mm ~~Max 250mm or other size for your required | |
| Paper bucket bottom diameter: | Min 100mm~~Max 180mm | |
| Paper bucket height: | Min 100mm~~Max 250mm | |
| Paper weight : | 250~~500gsm (g per meter) (Recommend 300~~ 360gsm) | |
| Paper material: | One-side PE coated Paper | |
| Speed of making paper cups: | 15~~25 pcs per minute | |
| Limite of temperature: | 0~~400 ° | |
| Electric heater power: | 10kw | |
| Main motor power: | 2.8kw | |
| Rolling motor power: | 2.2kw | |
| Power source : | 380V 50Hz or 220V 50Hz or other suitable for your power | |
| Whole machine weight: | 4000kg | |
| Appreance size:(long-width-height): | 3950x1900x2100mm (different cups'size, this may be difference) | |
| Package box size:(long-width-height): | 4000x2100x2300mm |
