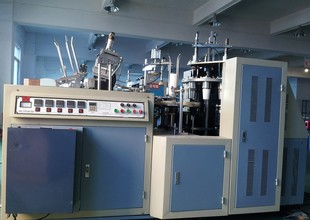

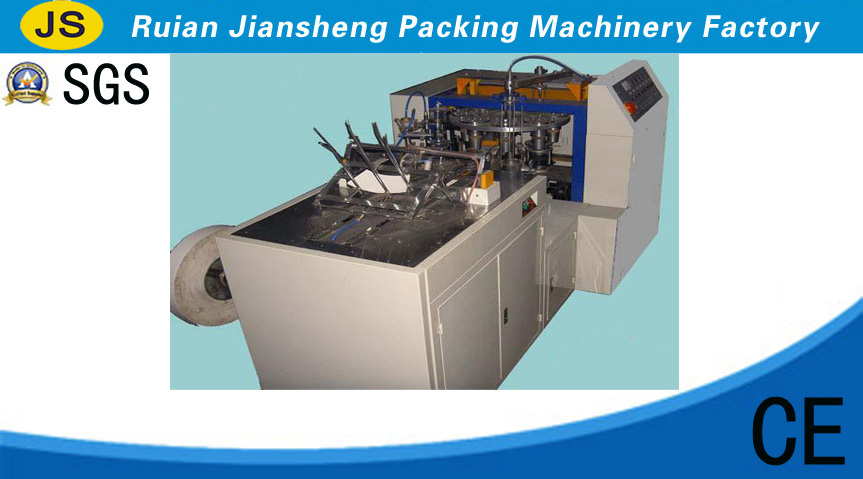

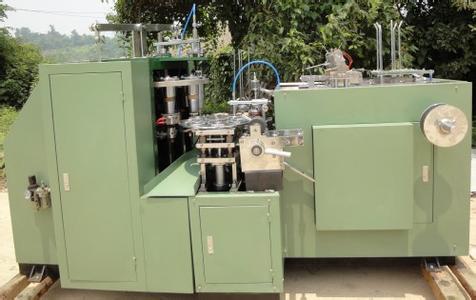

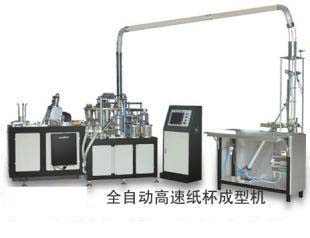

| Main technical data of YQZB-16 paper cup making machine |
| Paper Cup Size[Capacity] : | 4~~16 OZ (Change molds produce different cups'''' size) | |
| Paper cup top diameter: | Min 45mm ~~Max 85mm | |
| Paper cup bottom diameter: | Min 35mm~~Max 62mm | |
| Paper cup height: | Min 35mm~~Max 125mm | |
| Paper weight : | 180~~380gsm (g per meter) | |
| Paper material: | One-side PE coated Paper | |
| Speed of making paper cups: | 45~~50 pcs per minute | |
| Limite of temperature: | 0~~400 ° | |
| Electric heater power: | 2.55kw | |
| Main motor power: | 1.5kw | |
| Rolling motor power: | 0.55kw | |
| Power source : | 380V 50Hz or 220V 50Hz or other suitable for your power | |
| Whole machine weight: | 1500kg | |
| Appreance size:(long-width-height): | 2650x1200x1500mm | |
| Package box size:(long-width-height): | 2700x1400x1700mm |
