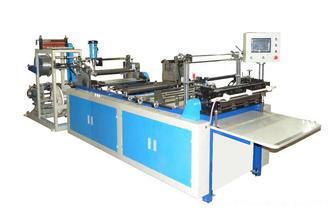

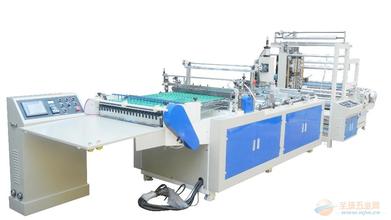

Model WY-800 Automatic Top Slider PE Self-sealing Bag (Zipper Bag) Making Machine
Model WY-800 Automatic Top Slider PE Self-sealing Bag (Zipper Bag) Making Machine Download Email Print this Page
Products Name :Model WY-800 Automatic Top Slider PE Self-sealing Bag (Zipper Bag) Making Machine
Bottom
Return
Specifications
Performance and characteristics
1. This machine is especially suitable for making keel bags, concave and convex bags, self-sealing zipper bags, etc.
2. The whole machine adopts intelligent PLC control, fast and stable feeding.
3. Adopt photoelectric eye to follow the mark: high sensitivity, automatic color change, accurate color catching. If the color code is lost, the machine will stop automatically.

4. The whole machine adopts computer programmed control system, which can set bag length and production speed; reduce scrap and save cost; automatic feeding, sealing

 and cutting, counting and discharging. Automatic alarm when the machine is abnormal, improve the safety of machine operation; touch screen operation interface, easy to operate.

5. Can be equipped with correction system discharge frame, ultrasonic, various shapes and quantities of punching.
6. Automatic zipper head device, save labor and time.


Main technical parameters
Model:800
Max. bag width:100-800mm
Max. bag length:200-720mm
Bag making thickness:0.02-0.2mm
Machine speed:30-100pcs/min
Total power:8KW
Machine weight:1500KGS
