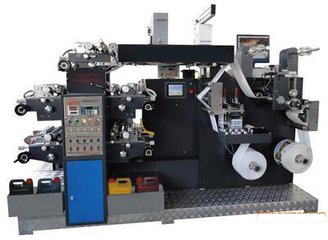

MHR-21S two-front, one-reverse, three-color double-sided flexographic printing machine
MHR-21S two-front, one-reverse, three-color double-sided flexographic printing machine Download Email Print this Page
Products Name :MHR-21S two-front, one-reverse, three-color double-sided flexographic printing machine
Specifications
Performance characteristics.

    The printing principle of this machine is to pass the ink evenly to the printing plate cylinder through the

 high precision anilox rollers, and then the printing plate cylinder is directly embossed on the surface of the

tape material, and the whole printing process is completed after the drying system. The machine has 6 kinds

 of plate roller specifications to change the printing length, accurate color registration and speed up to 60m/min.

It can replace screen printing machine!



Main Technical Parameters
Model MHR21S MHR31S MHR42S MHR52S MHR62S
Front side color printing group 2 colors 3 colors 4 colors 5 colors 6 colors
Back side printing color group 1 color 1 color 2 colors 2 colors 2 colors
Maximum printing length 300mm 300mm 300mm 300mm 300mm 300mm
Minimum printing length 106mm 106mm 106mm 106mm 106mm
Max. printing width 150mm 150mm 150mm 150mm 150mm
Max. printing speed 60m/min 60m/min 60m/min 60m/min 60m/min
Unloading/receiving diameter 400mm 400mm 400mm 400mm 400mm
Power supply power 220V/2.4kw 220V/2.4kw 220V/3.2kw 220V/3.2kw 220V/3.2kw
Weight of the machine 400kg 500kg 600kg 700kg 800kg
External dimensions 220Lx80W
x187H(cm) 220Lx80W
x187H(cm) 240Lx80W
x187H(cm) 280Lx80W
x187H(cm) 280Lx80W
x187H(cm)
Optional anilox roll size:150 180 300 500
Advantages.
1. Good color fastness, washable and not easy to fade, can print different materials.
2. Can change the gear cylinder at will to change the printing length.
3. Printing color is sharp, sturdy, and accurate color registration.
4. Operation suggestions, flexible, machine stability is particularly strong.
5. Can print white ink on black tape material.
