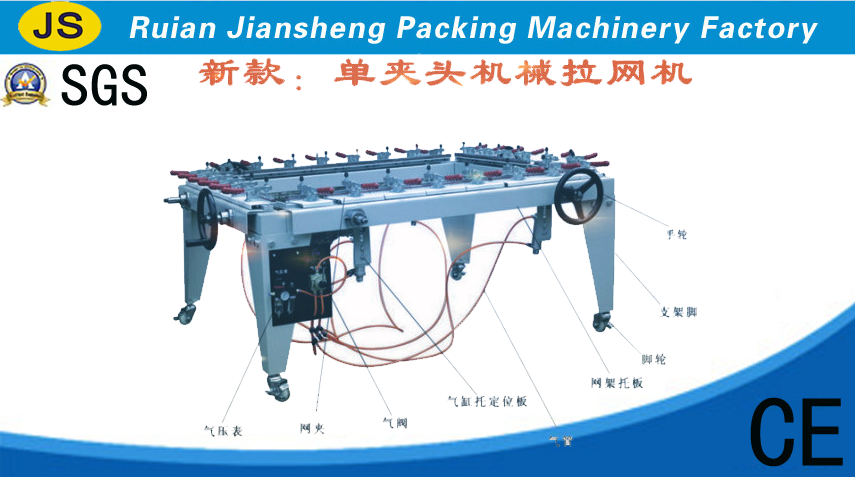

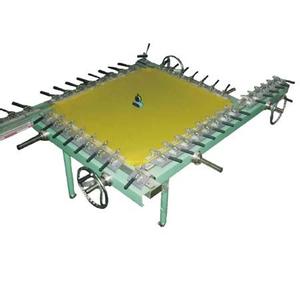

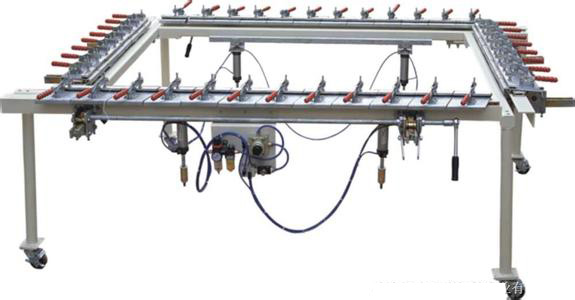

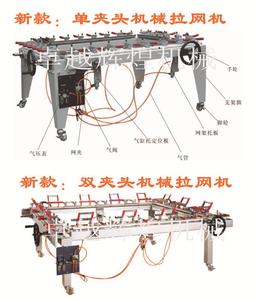

GJMLW718 High-strength type stretching machine(Strengthened material/high-strength/double-guideway) |
||||
| Spec(mm) | 1100 x 1100 | 1100 x 1500 | 1500 x 1500 | 1500 x 2000 |
| Aluminum Section Spec(mm) | 165 x 80 | 165 x 80 | 165 x 80 | 165 x 80 |
| Main Beam Width(mm) | 225 | 225 | 225 | 225 |
| Max Stretching Stroke(mm) | 130 | 130 | 130 | 130 |
| Max Stretching Size(mm) | 1280 x 1200 | 1280 x 1600 | 1680 x 1600 | 1680 x 2100 |
| Min Stretching S ize (mm) (with frame supporter) | 700 X 700 | 700 X 1100 | 1100 X 1100 | 1100 X 1600 |
| Max Tension (N/cm) | 50 ~ 60 | 35 ~ 50 | 30 ~ 45 | 30 ~ 40 |
| Air Pressure (Mpa) | 0.3 ~ 0.5 | 0.3 ~ 0.5 | 0.3 ~ 0.5 | 0.3 ~ 0.5 |
| Net Weight (kg) | 350 | 380 | 400 | 450 |
| Note: Special sizes and specifications can be customized. | ||||
