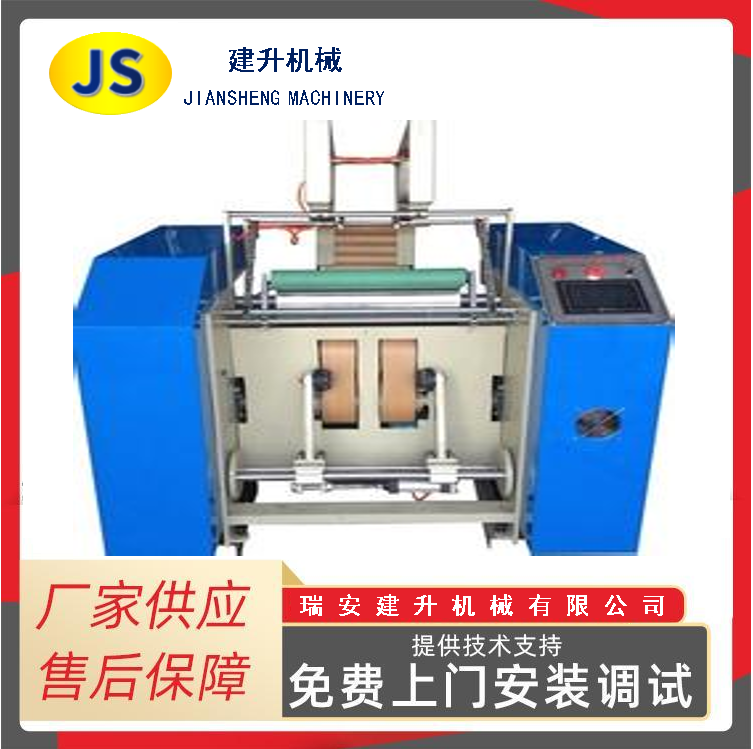

JSS-500 Automatic Film Winding and Rewinding Machine
JSS-500 Automatic Film Winding and Rewinding Machine Download Email Print this Page
Products Name :JSS-500 Automatic Film Winding and Rewinding Machine
Specifications
Application

To divide the large roll diameter of winding film into small roll diameter. Through rewinding, it can correct

the wrong layer of the product and improve the technical indexes such as flatness and appearance quality

of the coil.



Width of master roll :500mm
Diameter of parent roll paper tube: Φ76mm
Parent roll unwinding diameter :Φ400mm
Sub-roll width :500mm
Sub-roll tube diameter: Φ76mm
Sub-roll winding diameter:Φl45mm
Rewinding speed:800 m/min
Pressure:6Bar
PLC:Siemens SIEMENS
Weight:800kg
Overall dimension:(L×W×H)1300×1050×1645mm
