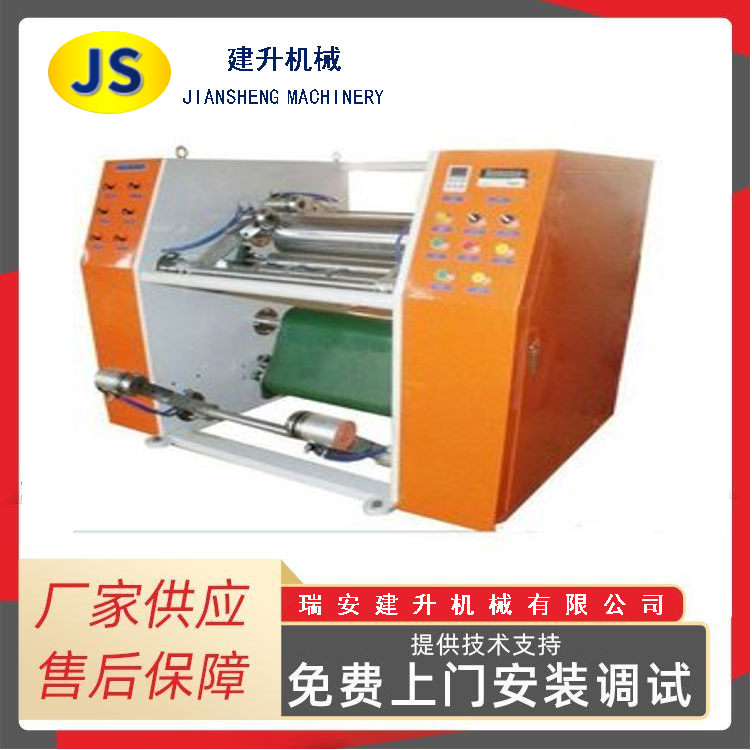

JSRW Series Wrap-around Film Rewinding and Slitting Machine

JSRW Series Wrap-around Film Rewinding and Slitting Machine Download Email Print this Page

Products Name :JSRW Series Wrap-around Film Rewinding and Slitting Machine

Bottom

Return

Specifications

Use

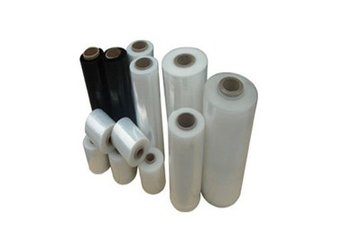

Slitting, rewinding and other multifunctional equipment in one. The main purpose is to divide the large roll

diameter of winding film into small roll diameter. Through slitting and rewinding, it can correct the wrong

layer of the product and improve the flatness, appearance quality and other technical indexes of the coil.

Technical parameters
Item: JSRW-500, JSRW-1000, JSRW-1300
Finished product width: 500 mm, 1000 mm, 1300 mm
Motor power (kw):, 1.5, 3, 3
Mechanical line speed (m/min): 400, 400, 400
Coiling form: By hand, By hand, By hand
Diameter of master roll(max)mm：φ400、φ400、φ400
Maximum width of master roll(max)mm: 500, 1000, 1300
Specification of mother roll core: 3", 3", 3
Sub-roll width: 500, 1000, 1300
Sub-roll diameter mm: φ300, φ300, φ300
Sub-roll core specifications: 3",2",3",2",3",2
Overall dimensions (L*W*H): 1.4*1.1*1.1, 1.9*1.1*1.1, 2.2*1.3*1.1
Weight (kg)(approx.): 700, 1000, 1100
