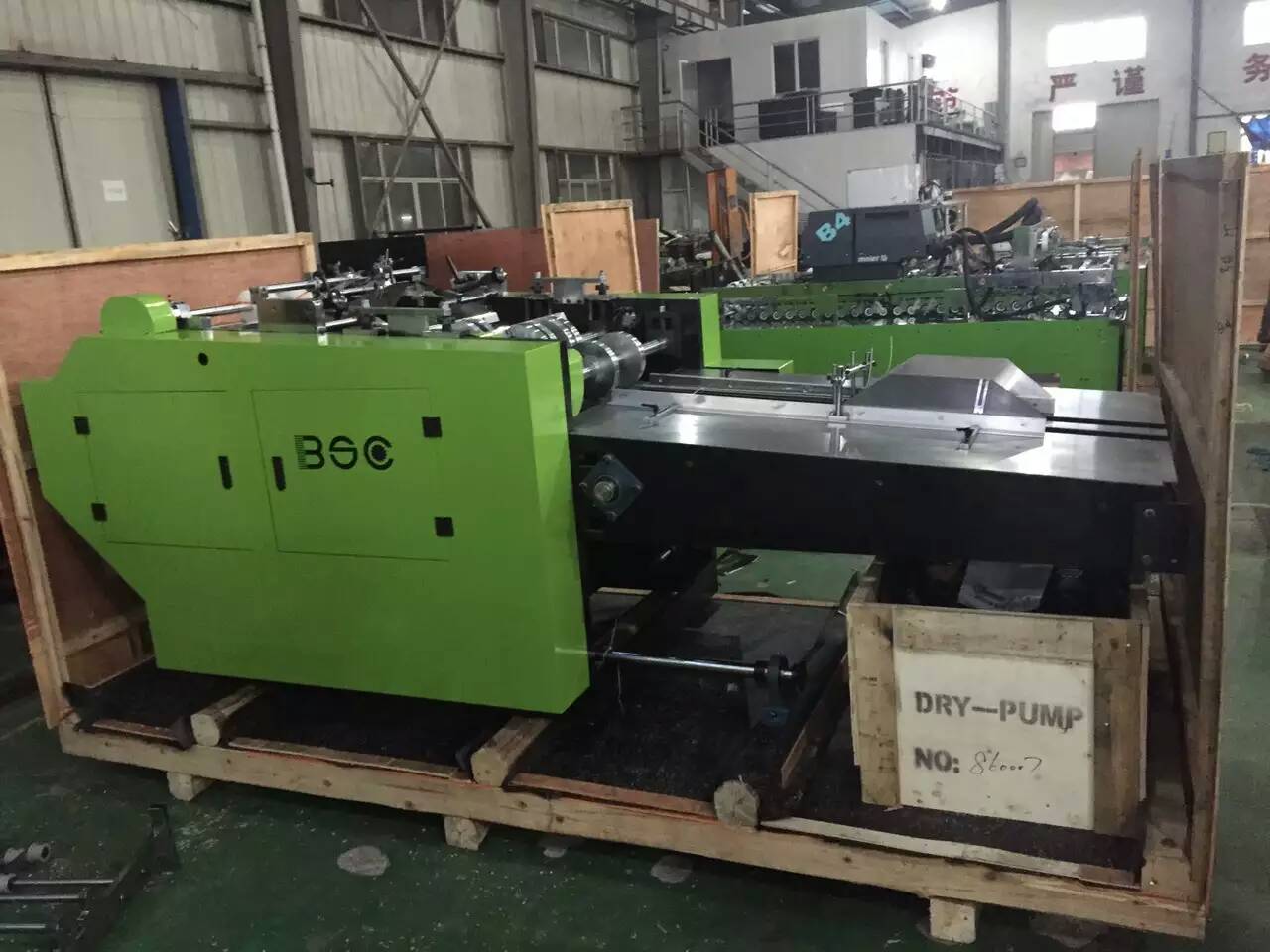

JSJ-1200E Automatic Folding Top and Bottom Cardboard Handbag Machine
JSJ-1200E Automatic Folding Top and Bottom Cardboard Handbag Machine Download Email Print this Page
Products Name :JSJ-1200E Automatic Folding Top and Bottom Cardboard Handbag Machine
Specifications

JSJ-1200E bag-making machine is made of single sheet of paper as raw material, which is automatically fed

 by flyer and conveyed through the feeding platform, then accurately positioned using front and side gauges,

 and sent to the press line department for pressing vertical lines. The machine automatically folds the top

 opening, automatically applies glue (can spray hot melt glue at the same time), forms, automatically folds

 the organ position, automatically presses the tube, and then through the pushing position, it is sent to the

 horizontal line pressing device to press the horizontal line, and then enters the bottom pulling, bottom card,

 bottom glue, and bottom forming, which is completed in one time. This machine adopts touch screen control,

 high bag making precision and fast speed, it is the equipment for processing export type handbag and unified

 specification large quantity handbag production.



Main technical parameters
Size:16000mmx3000mmx1690mm
Machine weight:10T
Electrical power:13KW
Organ height:55--180
The maximum specification of paper feeding:1200mmX650mm
The minimum specification of paper feeding:410mmX290mm
Maximum width of bag-making surface:180mm-430mm
Max. height of forming cylinder:290mm--650mm
Paper weight:100-350g
Paper bag speed: 60-100pcs/min
Glue: hot melt glue machine, hot and cold glue dual-use
