Inner Diameter

5-10mm

Roll Of Paper

2-3 Plies

Thickness

0.25-1mm

Cutting Length

100-820mm

Hub Wheel

Two Head

Way Of Fixing Shaft

Clamp

Way Of Fixing Length

Encoder

Production speed

10-45m/Min (20-30 degree summer 20-45m/min , 0-10 degree Winter 10-25m/min )

Way Of Cutting

Circular Cutting Blade

Way Of Gluing

Single / Double Side

Type Of Paper Reel Stand

T-bar

Blade

5 Groups

Driving

Winding Belt 1500*15*2mm

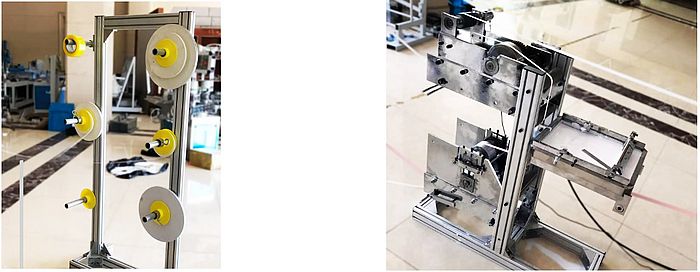

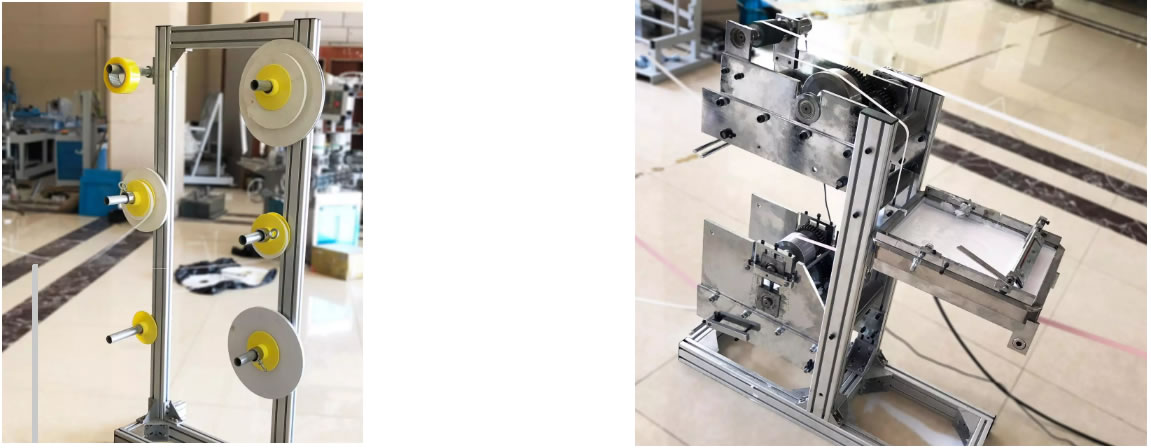

Paper Reel Stand

3 Plies T-bar l Paper Reel Stand

Glue System

3 Plies Glue Loading Unit

Main Motor

1.5kwx2 CHINA XINLING

Inverter

3.7kw CHINA RIHONG

Servo Motor

1.3kw JAPAN YASKAWA

Control System

CHINA

Pathway System

TAIWAN SHANGYIN

Operator

1-2 Persons

Main Part Dimension

3250*1100*1450mm

Overall Dimension

7200*4800*1500mm

Weight

1500kgs

Way Of Scraping Glue

Independent Glue Box/Polyurethane Scraping Blade

Moving Finished Tube

Automatically

Lubricating Oil

Automatic Giving

Spare Parts And Professional Tools

Allen Wrench:

1 piece

Open-End Wrench:

1 piece

Useful Tools:

1 set

Blade:

5 pieces

Belt

2 pcs
