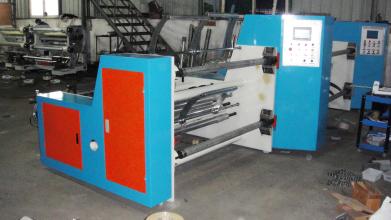

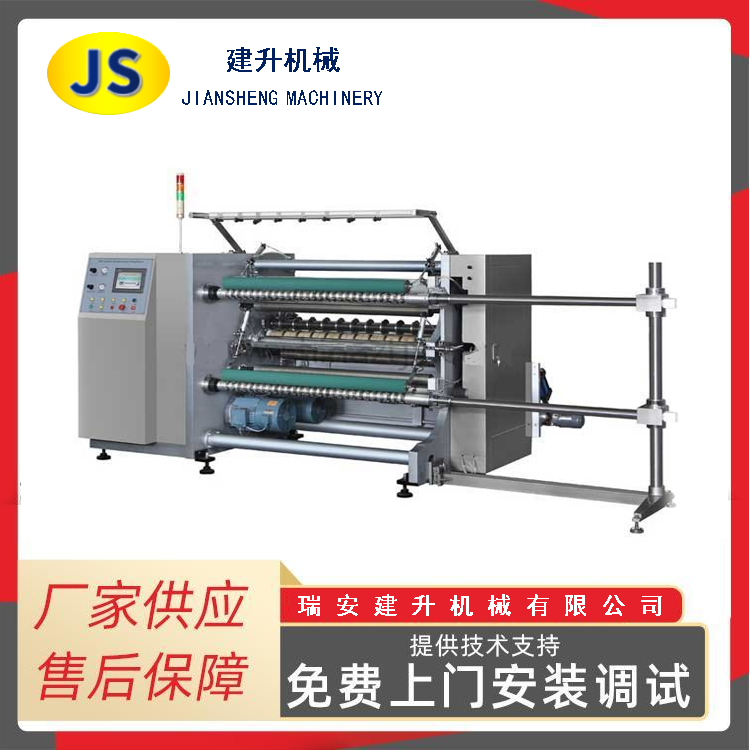

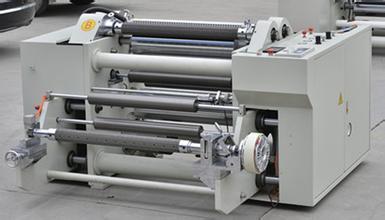

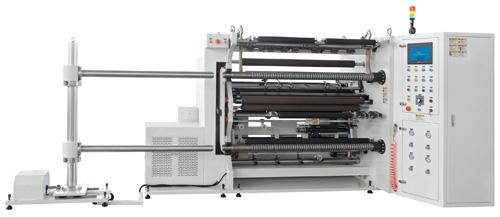

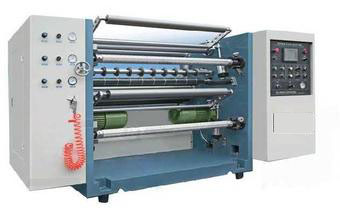

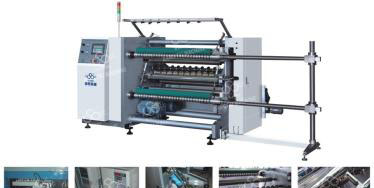

Product Description Application: This machine is suitable for slitting cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film rolls, foil rolls, various paper rolls, film rolls and various materials after printing.
Features: 1、Release part: Adopt shaftless air-pressure clamping method, equipped with air-pressure chuck, clamping raw materials quickly, simple loading, single person can operate. The correction adopts imported LPC correction device, which can realize the edge-seeking guiding and printing line guiding. Unwinding tension is calculated by the computer of the original preset parameters through the independent vector frequency conversion motor to achieve constant tension. 2, slitting part: equipped with two types of slitting: flat knife slitting and round knife slitting 3、Winding part: three motors are used to wind the way, the receiving shaft adopts imported center type air pressure slip shaft and automatic tension compensation system, so that the receiving tension is smooth without the need to adjust according to the speed and diameter increment. 4、Winding pressure stick part: This machine is equipped with two sets of air pressure type automatic lifting pressure stick, tension is automatically controlled by computer. 5、The waste side processing part: This machine is equipped with vacuum type waste side exclusion system, which will discharge the waste side of slitting from the machine body through strong suction method. 6、Electrostatic elimination part: This machine is equipped with a set of electrostatic brushes in front of the upper and lower rewinding shafts respectively, which can effectively eliminate the electrostatic generated by the slitting and rewinding of the film. 7、 Finished product unloading frame part: Equipped with finished product unloading rack can provide easy and efficient operation of large diameter finished products and save the unloading time. 8、PLC control system: Adopt imported PLC to achieve accurate and stable control function, true color touch screen to make the image display simple and beautiful, dialogue type parameter setting environment, eliminating the complicated setting to start the operation: the user only needs to input the parameters of thickness, width, density, diameter and speed of raw materials before starting the machine, and the next work is all done by the computer automatically.
Optional: 1、Hydraulic lifting structure for material discharge 2、Static elimination brush 3、Servo motor 4、Radium on the paper tube function Main technical parameters: Coil width :1000mm, 1300mm Unwind diameter :1000mm, 1000mm Take-up diameter :600mm, 600mm Paper tube inner diameter: 3'' or 76mm(optional: 6'' or 152mm) 3'' or 76mm(optional: 6'' or 152mm) Slitting speed: 10-400m/min, 10-400 m/min Correcting accuracy: ≤0.1mm, ≤0.1mm Minimum width of finished product: 30mm, 30mm Total power: 20KW, 20KW Machine weight: 3800Kg, 4500kg Overall dimension (L×W×H): 2400mm×4000mm×1900mm, 2700mm×4000mm×1900mm
