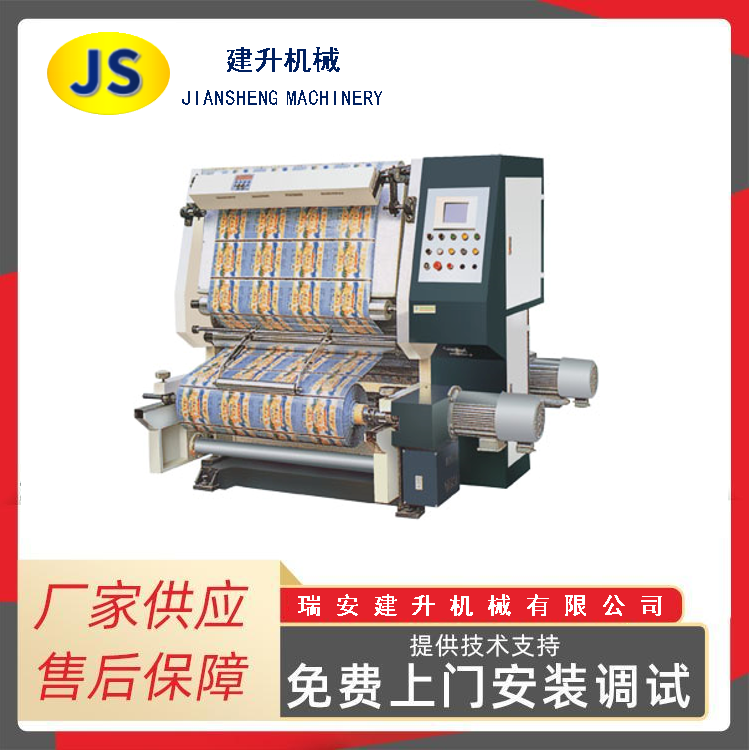

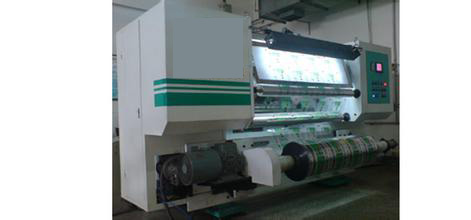

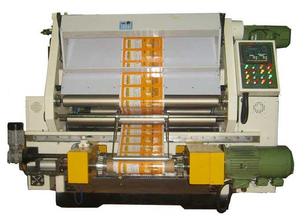

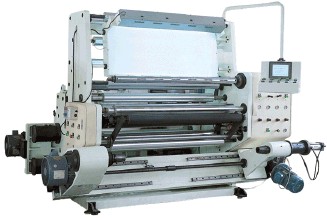

JPF-800/1200 type high-speed inspection and rewinding machine
JPF-800/1200 type high-speed inspection and rewinding machine Download Email Print this Page
Products Name :JPF-800/1200 type high-speed inspection and rewinding machine
Specifications

JPF-800/1200 type high speed inspection and rewinding machine is a new type, practical, high

 speed inspection and rewinding machine developed by our company combined with the market

 demand of soft packaging, this machine is mainly applicable to the soft packaging industry after

 the printing of the product pattern detection and rewinding, is to solve in the printing process of

 unqualified products into the next process, for the next process of compounding to save costs to

 provide good conditions. It uses photoelectric automatic tracking strobe through the way of rewinding,

so that the high-speed printing products to achieve the function of relatively static pattern effect, in the

 positive and negative function of switching, it is very convenient to check the unqualified products,

detection pattern that is fast and practical.


Main technical features.
1, this machine can be high-speed forward, emergency stop, reverse work, stepless frequency conversion speed regulation, stable speed, simple switching, convenient, reliable.
2、 The machine adopts automatic constant tension control device for winding and unwinding.
3、 The unwinding part adopts photoelectric tracking automatic deflection correction device.
4、 Detection adopts photoelectric automatic tracking pattern and automatic synchronous strobe.
5、 Automatic meter counting and line speed display function.
6、 The whole machine adopts pneumatic locking device.

Main technical parameters.
Material used: printing film 80g/m2 or less roll paper
Material width: 800-1200mm (according to the model)
Maximum diameter of winding and rewinding: Φ600mm
Inner diameter of winding and unwinding cylinder core: Φ76 (3")
Mechanical speed: 0-200m/min
Overall machine power: 380V 5.5-7.5kw
Working air pressure: 0.7MPa
