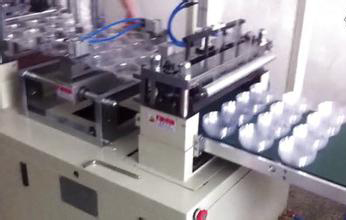

HLD-420 cup cap forming machine
HLD-420 cup cap forming machine Download Email Print this Page
Products Name :HLD-420 cup cap forming machine
Specifications

Cutting Frequency

15--45 times/min

Power

380v/220v/50HZ

Stroke adjustable range

30--160mm

Max.Forming Depth

30mm

Max.Forming Area

400×160mm

Capacity

3600/—6000/

Motor Power

1.5kw

Consumption

>0.2m3/min

Pressure

0.4--0.7mpa

Overall Dimensions

2500×1000×1600mm

Weight

1000kg
