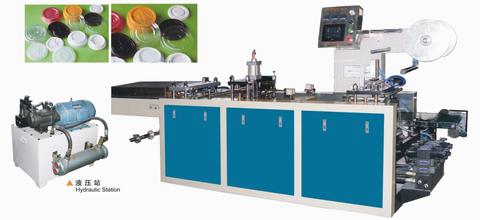

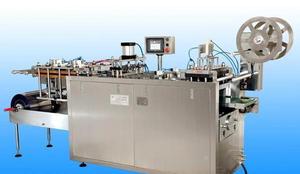

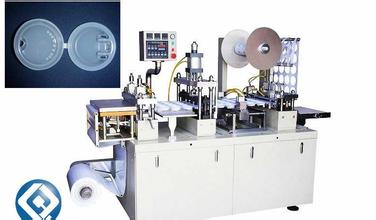

HLD-420 Cup and Lid Machine

HLD-420 Cup and Lid Machine Download Email Print this Page

Products Name :HLD-420 Cup and Lid Machine

Bottom

Return

Specifications

Product Description:

The cup lid machine is the first new product developed by our scientific researchers according to the

market demand and previous production technology. This machine is a kind of multi-station automatic

machinery, which solves the hygiene standard of food packaging, not only effectively solves the many

problems in the production of PS/PET/PVC plastic products, such as large investment in production capital,

large labor input, complex production process, low product hygiene and safety, etc., but also has a wide

range of applications, which can be applied to the production of PS/PET/PVC plastic products such as

hardware and food and drug, and the whole machine has a beautiful appearance and affordable price.

Exquisite, affordable price, popular with domestic and foreign users!

Main features
1. Realize GMP/QS double standard dust-free and purified production, improve product hygiene and safety, and solve cross contamination.
2. Unwinding, forming, punching, cutting and rewinding five-station synchronous production, robotic clamping and feeding, compact structure and smooth operation, simple operation.
3. Adopt special feeding device, can save 20 times of electricity, special punching device, can save one fifth of material.
4. Stroke adjustable, easy to replace the mold, can change the section size at will, suitable for a variety of specifications of products.
5. PLC man-machine interface, stepless frequency conversion speed control, PC circuit control face plate can be adopted
6. Can design mould according to user's demand.
Main function: PS / PVC / PET and other plastic products forming, punching and punching.
Applicable objects:Mainly applicable to HIPS, PS, PVC, PET and other plastic sheet materials.

Punching frequency:15--45 times/min(times/min)
Power supply:380v/220v/50HZ
Stroke adjustable range:30--160mm
Max. forming depth:30mm
Max. forming area:400×160mm
Production capacity:3600pcs/h-6000pcs/h
Motor power:1.5kw
Air consumption:>0.2m3/min
Air pressure:0.4--0.7mpa
Dimension:2500×1000×1600mm

Weight:1000kg

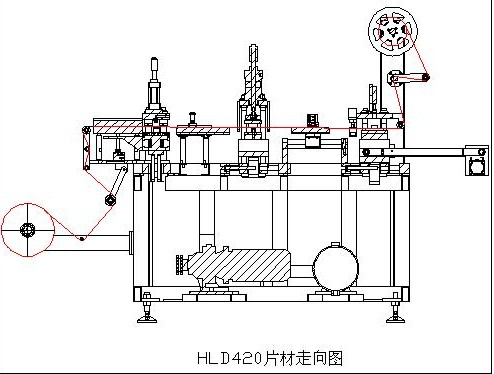

Cup lid production process

After-sales service.
After the equipment leaves the factory, the company sends professional and technical personnel to install and debug straight production of qualified products to customer satisfaction. Free warranty for one year and provide lifelong technical support.
After-sales service: The company set up professional and technical personnel, touring around the country, regular visits to customers, timely discussion with customers to solve new problems arising from the use of. And cooperate with customers to develop sales programs. Let customers buy with peace of mind, use the comfort is our diligent pursuit.
