High precision noise insulation tape slitting machine
High precision noise insulation tape slitting machine Download Email Print this Page

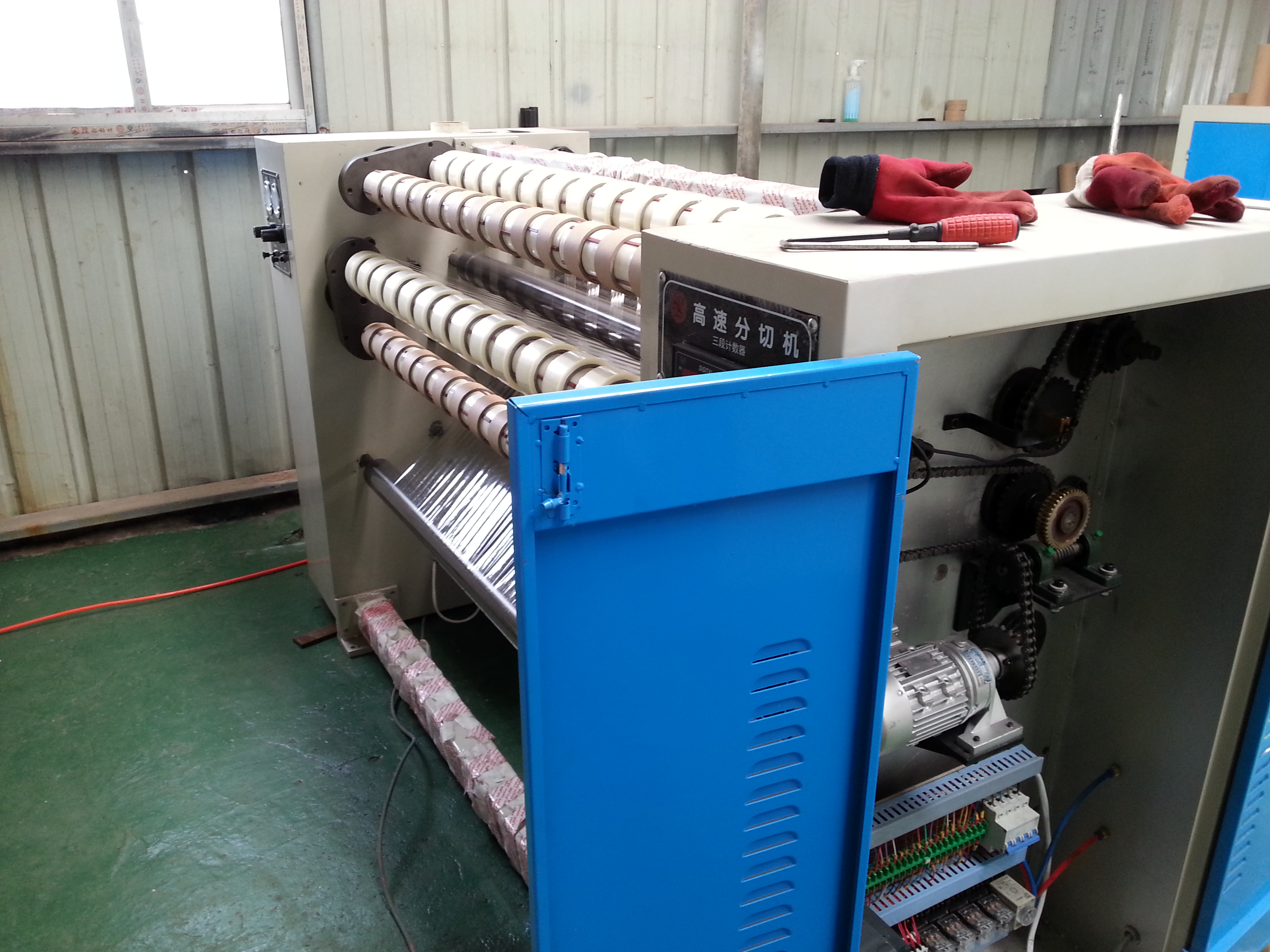

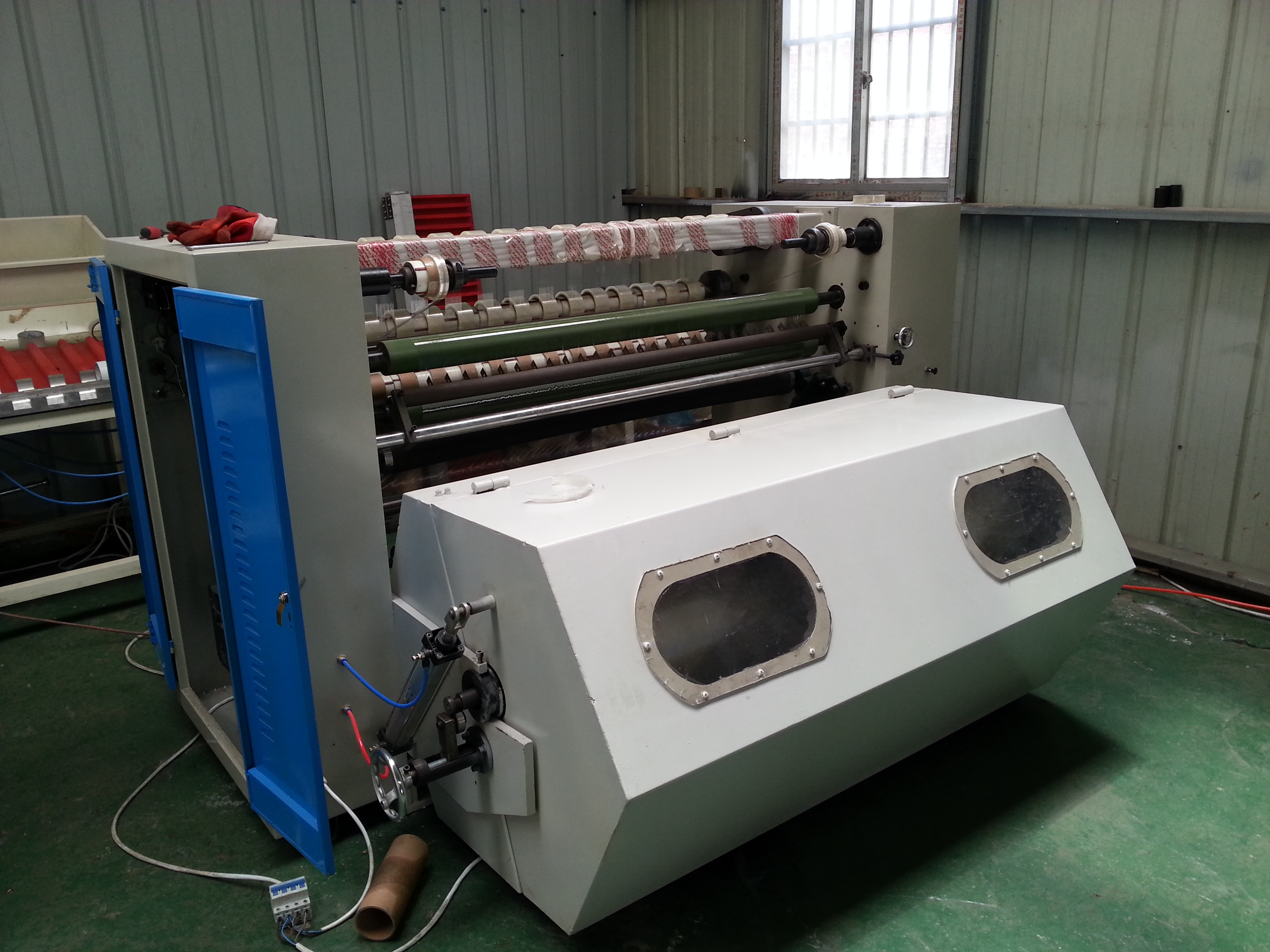

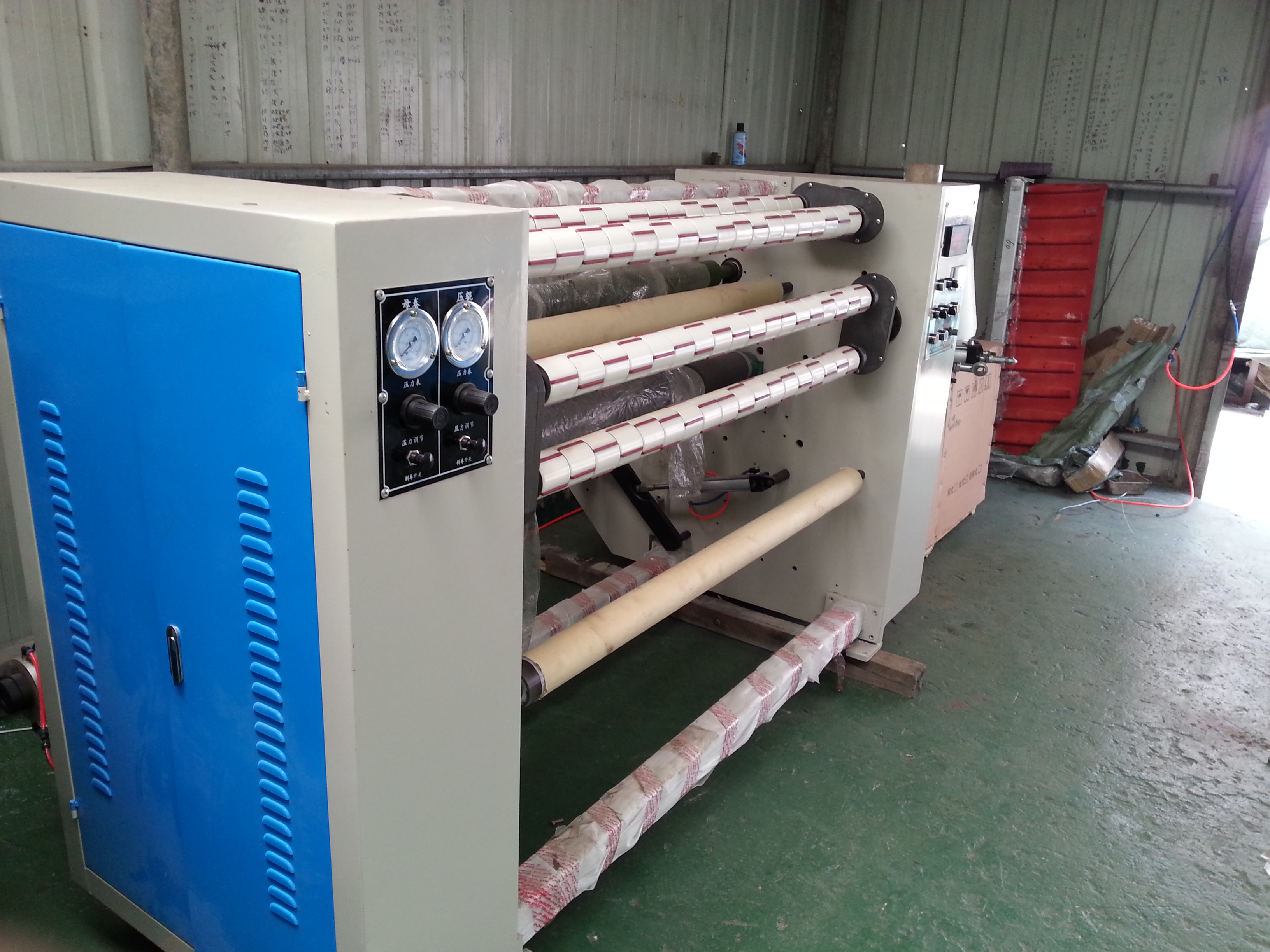

Products Name :High precision noise insulation tape slitting machine
Specifications
Features
1、The machine is controlled by various departments, centralized panel control, easy to operate.
2、Three-stage length setting: The advanced three-stage length counting ensures accurate winding length.
3、Automatic exchange of shafts: After the winding operation is completed, the two shafts are automatically exchanged, easy to operate and highly efficient.
4、Bow type unrolling wheel: The unrolling wheel is of unique bow type design. It completely eliminates the wrinkling of the tape in the process of unrolling or feeding.
5、Pneumatic brake: When stopping, the tape can be stopped instantly, accurate positioning and labeling.
6、Low noise: the operator will not be bothered by the noise and affect the work efficiency.


Technical parameters:
Effective width: 1350mm
Maximum discharge diameter: 700mm
Slitting width: 24-1280mm
Winding paper core: 76.2mm
Winding diameter: four-axis exchange: 76.2-240mm
                  Two-axis exchange: 76.2-400mm
Tool: 0.2x22x60mm
Mechanical speed: 0-180M/min
Host motor: 4KW
