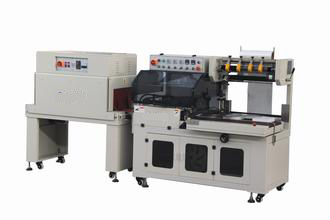

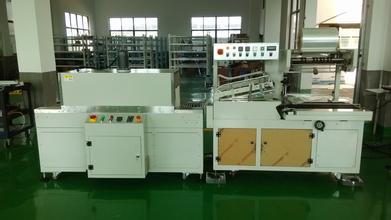

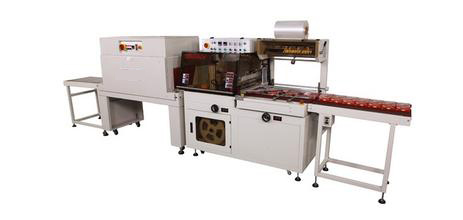

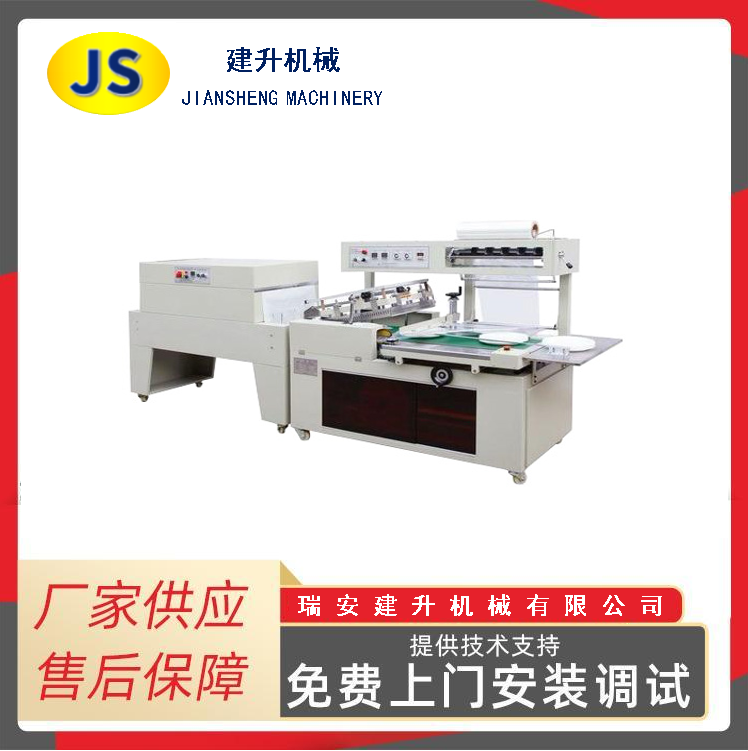

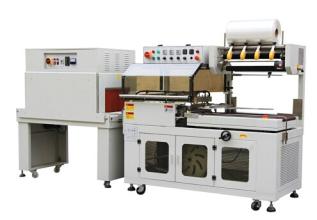

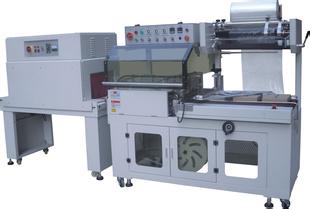

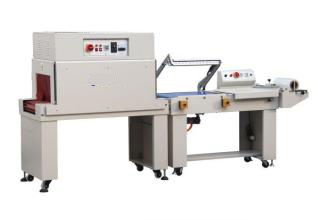

HH-500 Automatic L-type heat shrink packaging machine
HH-500 Automatic L-type heat shrink packaging machine Download Email Print this Page
Products Name :HH-500 Automatic L-type heat shrink packaging machine
Specifications
Product Model: HH-500
Product name:Automatic L-type heat shrink packaging machine
Product Details.
Scope of application:

Automatic L-shape sealing and cutting heat shrink packaging machine is a fully automatic and unmanned packaging

 machine, which can be used with automatic packaging line, feeding, bagging, sealing and shrinking are completed

 automatically. High working efficiency, widely used in printing, color box, greeting card, photo album, photo frame,

 medicine, electronics, daily chemical, cosmetics and other mass production industries.



Main technical parameters HH-500
Sealing and cutting form: L-type fully closed type
Power source: 380V/50-60Hz/3phase
Maximum speed: 10-35 packs / min
Packaging height: ≤125mm
Packaging width: ≤350mm
Packaging size: width + height ≤ 400mm length + height ≤ 480mm
Use of film: POF folded film
Maximum film: 530mm (width) × 280mm (outside diameter)
Total power:1.5kW
Platform height: 780-850mm
Air pressure: ≤0.5MPa(5 bar)
Sealing and cutting system: constant temperature heating system, easy to replace the cutting knife, sealing and cutting without smoke and odor
Main material: carbon steel
Weight of the whole machine: 300kg


Main technical parameters HH-550
Power source: 380V/50-60Hz/3phase
Furnace size: 1200mm (L), furnace mouth 450 (W) × 220 (H) mm
Conveying speed: adjustable, 40m / min
Conveyor belt: chain conveyor belt, rollers over silicone tube
Total power:7kW
Platform height: 780-850mm
Main material: carbon steel
Weight of the whole machine: 160kg
