Application:

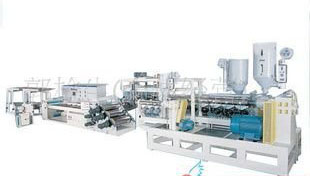

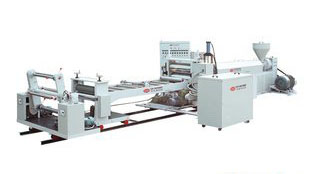

With fine quality,beautiful appearance,reliable performance,fast production speed;GSB-680、1000、1400plastic double layer Co-extrvding sheet unit is the best machine for producing sheet materials such as PP.PS.And PE etc.

Main Technical Parameter:
Max.output	150kg/h	Motor Power of baller	3Kw	Addition distance of felt wrapped roll	0-20mm	Extrusion machine	4200×1600×2100
Dia of screw stem	90mm-110mm	Heating Power of drum	16.5kw	Fzce length of felt wrapped roll	750mm	Assist extruder	3200×1600×2100
Nataral scale	30:1	Heating Power of drum	6kw	Number of felt wrappeil roll	3个	Press-Polishing machine	1400×1100×1900
Width of die mouth	750mm	Heating Power of die head	6.6kw	Motor Power of extrusion machine	30kw-45kw	Electric control console	1100×400×1860
Thickness of die mouth	0.3-2mm	water consumption	10m3/h	Motor power of mash changer	1.1kw	Baller	470×1400×1450
Dia of felt wrapped roll	270mm	Overall dimensions	Long×with×High	Motor Power of Press-polishing machine	3kw	Weight	6t
