Performance use.

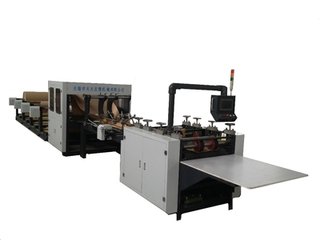

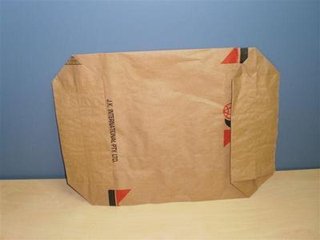

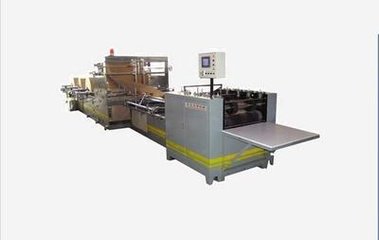

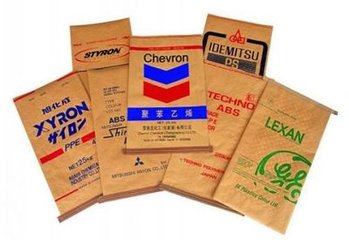

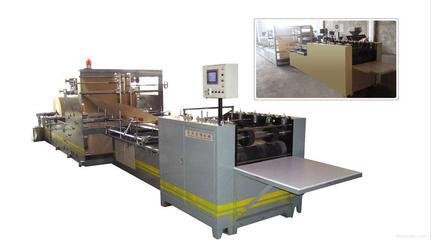

This machine is a new generation of multi-layer kraft paper tube making machine designed to solve environmental pollution and conform to green environment protection. It is a machine that automatically forms, glues, cuts off, indents the upper and lower tube mouths, etc., finished products in one output according to the required size of printed roll paper and plastic film. It is the ideal equipment for making tubes of paper bags, chemical bags and food bags, and has a wide range of application.
Main features.
Adopt frequency conversion speed control, with automatic gluing, forming, ripping, counting and other functions.
Technical parameters.
Bag making length: unlimited
Width: 300-600mm
Paper grammage: 70-140g
Coil width: 620-1250mm
Bag-making line speed: 65 m / min
Total power: 11KW
Number of bag-making layers: 2-4 layers (single kraft paper, two rolls of kraft paper, one roll of film)
Total weight: 5000kg
