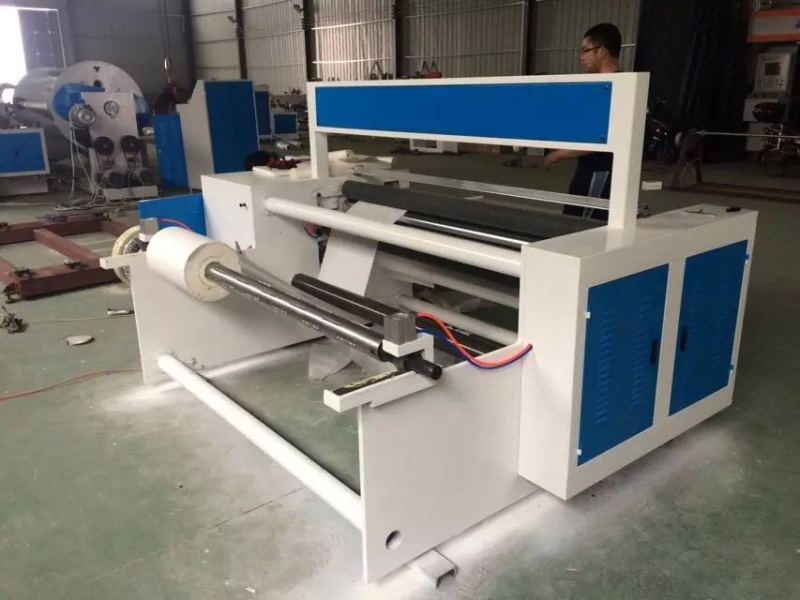

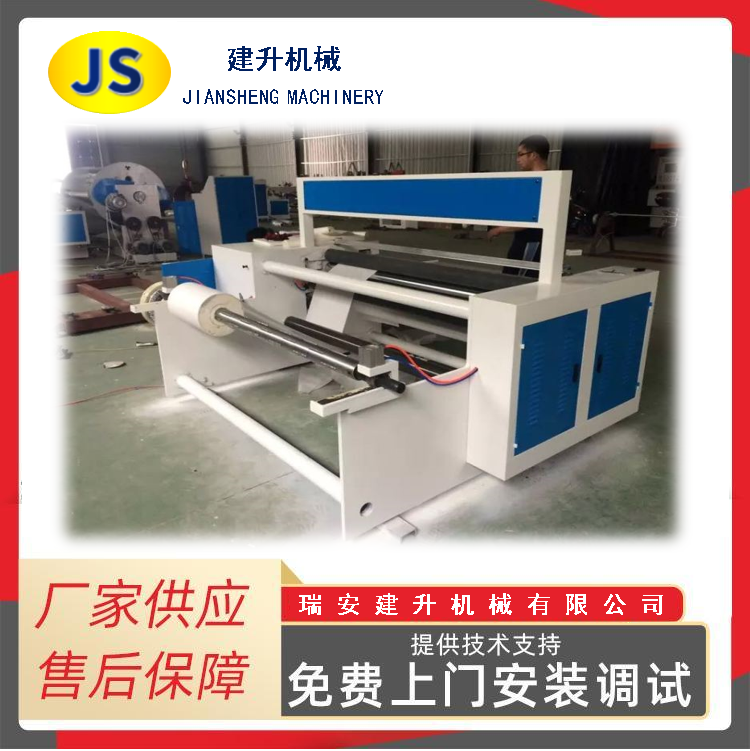

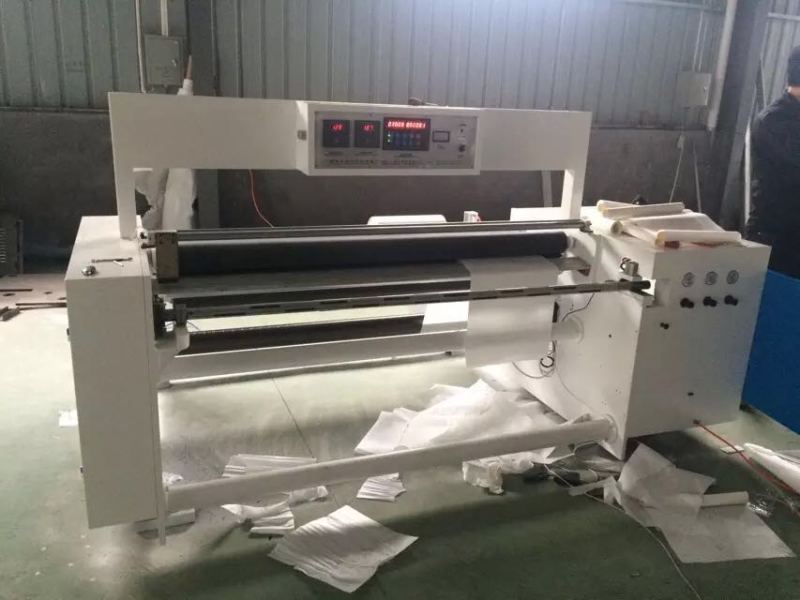

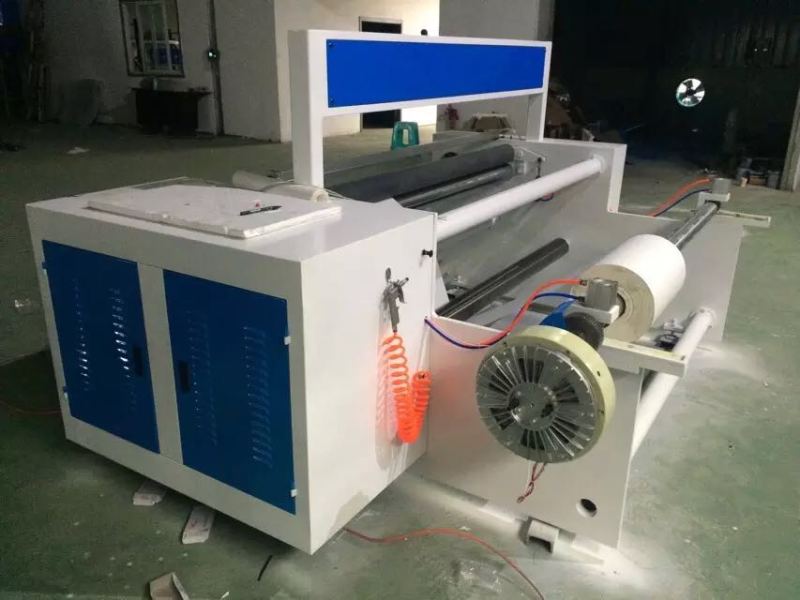

FJ type series automatic rewinder
FJ type series automatic rewinder Download Email Print this Page
Products Name :FJ type series automatic rewinder
Specifications
Uses.

This machine is special equipment for producing hard paper core, soft paper core, and other small rolls of paper

(gift paper, advertising paper, wall paper, various packaging paper).

Features.
Unwinding: pneumatic lifting type unwinding frame

Reel: continuous air up shaft, computer control of inflation and open (can be arbitrary adjustment of the reel

diameter)

Cutting: the use of rodless cylinder round-trip automatic partition
Main control: microcomputer control, with accurate meter counting and high automatic operation performance

It has high accuracy of fixed length, neat rewinding, easy operation, beautiful appearance, stable performance

 and other functions, and can also be used with automatic shrink packaging machine to form a production line.


Model: FJ-600, FJ- 900/FJ-1300
Coil width MAX:600mm、900mm、1300mm
Unwind diameter Max:Φ600mm、Φ600mm、Φ600mm
Take-up diameter Max:Φ200mm、Φ200mm、Φ200mm
Speed Max:10-100m/min、10-100m/min、10-100m/min
Total power:1.2KW、1.5KW、2.5KW
Weight: 1000kg, 1200kg, 1500kg
Overall dimension :1500×1400×1350mm
1500×1700×1350mm、1500×1900×1350mm
Working voltage: two-phase 220V50HZ, two-phase 220V50HZ
Two-phase 220V50HZ, two-phase 220V50HZ
