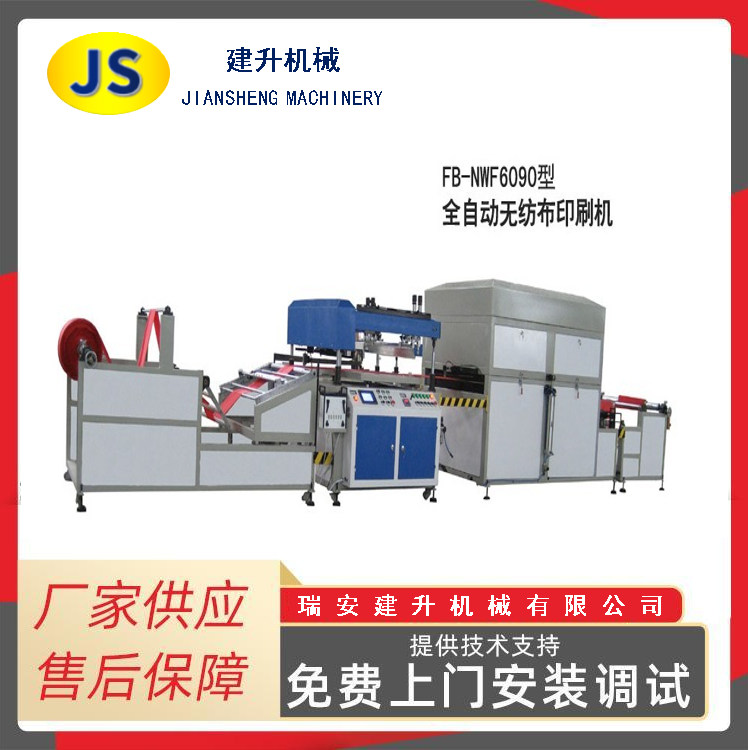

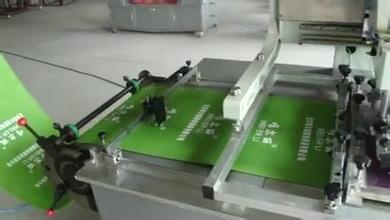

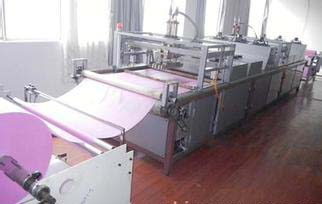

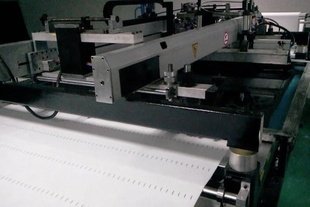

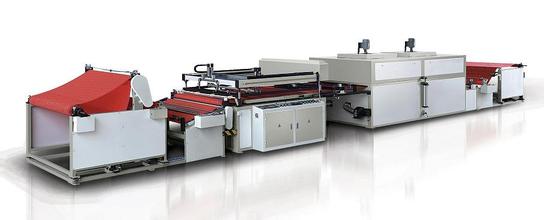

Performance characteristics. 1、Automatic feeding, printing, drying, receiving, saving labor and overcoming the constraints by weather conditions. 2. balanced pressure and thick ink layer, suitable for printing of high-grade non-woven products. 3、Multiple sizes of printing frames can be used. 4、Large format printing size can print several pages at the same time, which improves the working efficiency. 5、The effective graphic gap before and after full-page printing can be as small as 1cm, effectively reducing material loss. 6、Servo motor automatically controls the accuracy of printing. 7、Used in conjunction with non-woven bag making, direct forming, greatly improving productivity. 8、The whole assembly line needs only one person to operate.
Maximum printing size:1200x1000mm Nonwoven roll width:1300mm Nonwoven grammage:70-120g/m2 Max. roll diameter of discharge machine:800mm Production speed:750m/h Total power supply:380V&20kw Air pressure:0.6mpa Equipment size:8930x1900x1730mm Machine weight:1500kg
