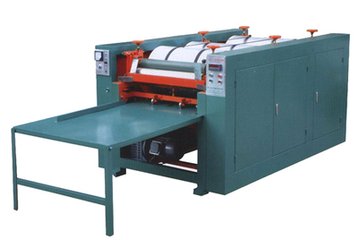

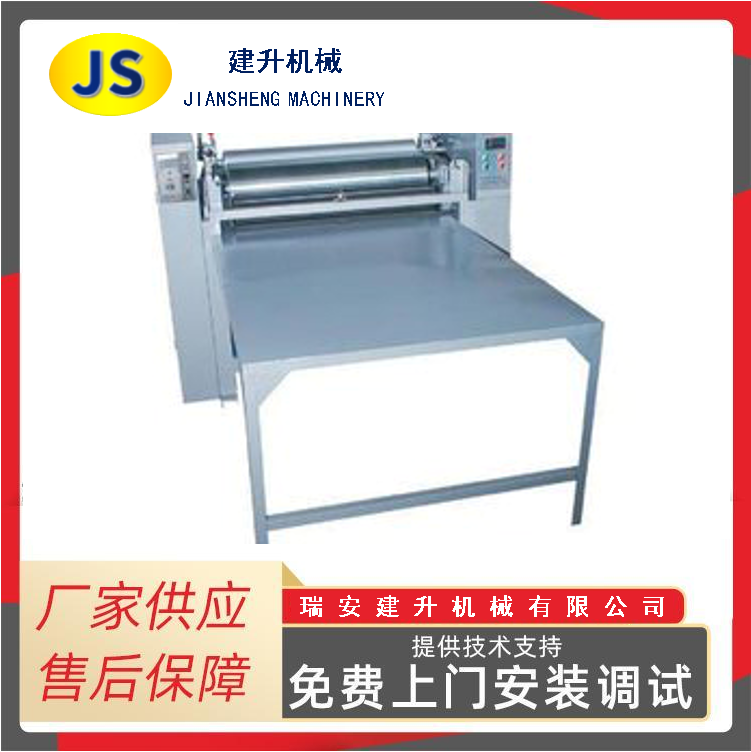

DS-850 type woven bag printing machine
DS-850 type woven bag printing machine Download Email Print this Page
Products Name :DS-850 type woven bag printing machine
Specifications
Detailed information.
Can be equipped with automatic bag collector


Product introduction:
1. Counter can be pre-set to chime;
2. From 1500-3500 pieces per hour, stepless speed change;
3. Imported PVC conveyor belt, automatic positioning;
4. Automatic tracking and separation of printing sticks;
5. The oil hopper can be exchanged at will, and the ink transfer stick and the printing plate can be clutched;
6. Ink transferring by net stick, increase printing smoothness and save ink;
7. After conveying extended, cool dry function.
Main technical parameters:
Motor power 1.5KW(AC)
Thickness of plate making 4-5mm
Number of workers 3 people
Printing speed 1500-3500 (hour)
Maximum printing surface 1200×640mm
Maximum feed 1300×850mm
