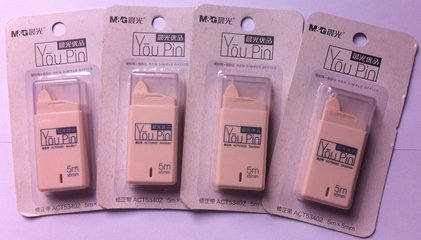

This machine is suitable for packaging daily necessities, stationery, small hardware, cosmetics, medicine mouth and other paper-plastic packaging.

Packaging objects such as: batteries, toothbrushes, needles, lip balm, pens, glue, sockets, bearings and thus improve the product grade.

This equipment is the company's scientific researchers through continuous improvement and innovation independently developed a new generation

 of successful packaging equipment, using human-machine interface, PLC control, encoder support, touch screen operation, automatic counting,

 adjustable stroke, precise and convenient, frequency conversion infinitely adjustable speed, stable machine operation, can be applied to a variety of

 sizes and different specifications of the paper pot packaging, easy to operate, durable, clean and sanitary, and equipped with safety emergency stop

 device can ensure that the production of emergency measures to increase the operating safety factor, is the packaging equipment.

Requirements: the equipment automatically completes the molding blister, punching and cutting, blister transition, automatic filling of the battery,

automatic under the paper card, heat sealing, finished product delivery out of the material and other functions.

(1) the equipment efficiency is set to more than 20 die / min, each die for six cards (according to Huatai provide:

1), LR6 four grains, LR6 two grains, R6P four grains, R6P two grains;2), LR03 four grains, LR03 two grains, R03P four grains, R03P two grains packaging

 battery hanging card for the sample, paper card uniform size: 83X115mm; plastic shell uniform shape size: 73 * 68mm), the same specification model

 replacement feeder and template and other parts do not affect the accuracy of the equipment, and to ensure stable operation of the equipment to meet

 the technical requirements of the production process, the need to adjust the speed of the equipment according to the material and quality requirements.

(2) The equipment adopts Japan-made Holliday self-lubricating vacuum pump, the choice of imported cylinders and electrical components to increase the

stability of the equipment.

(4) The equipment uses human-machine interface and PLC control system, and the equipment is equipped with counting, power-on password, fault

reminder (warning light alarm), maintenance reminder (warning light alarm), etc. (5) It is convenient to clean the residue.
