Model

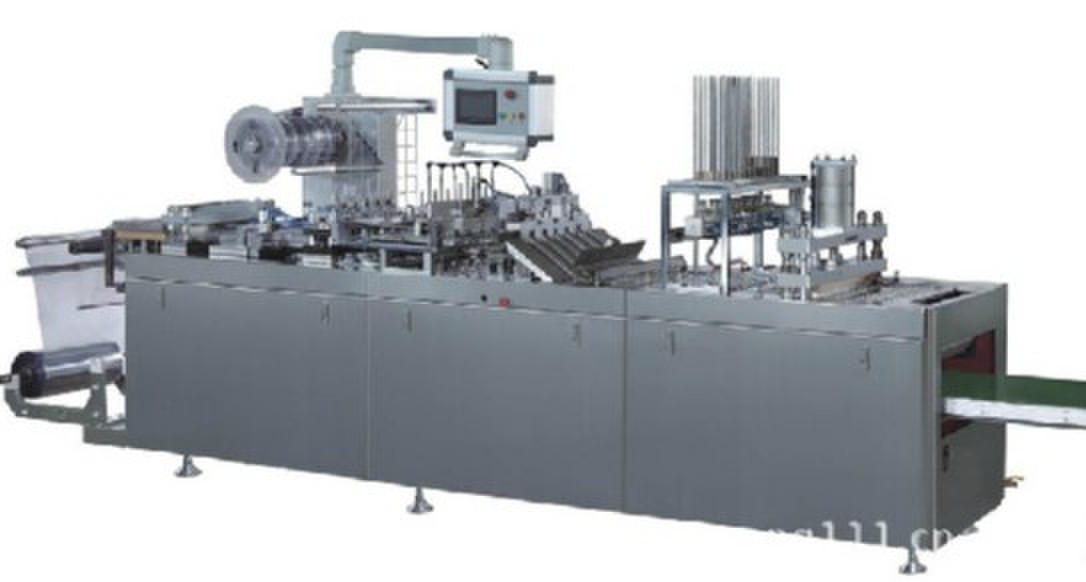

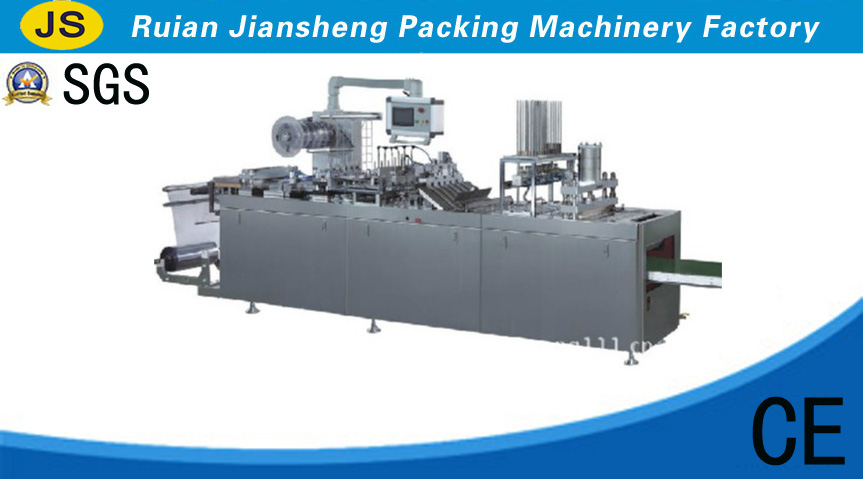

DPZ-570D

Packaging materials

P VC hard sheet (0.15-0.5)*480mm

Cardboard 200g-700g  200*570mm

Compressed air

Pressure 0.5-0.8mpa
Air consumption ≥0.5/min

Electricity energy consumption

380v 50Hz 10kw

Die cooling water

Energy consumption of tap water or recycling water 50L/h

Equipment size

(Length*Width*Height) 5100*1100*1500mm

Weight

2500kg

Production capacity

10-25 stamping/ min

Range of stroke

50-160mm

Largest cardboard area

570*200mm

Largest molding area and depth

480*160*40mm
