Main technical parameters：
|
|

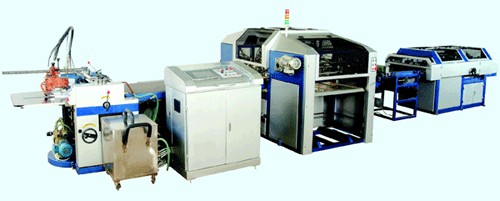

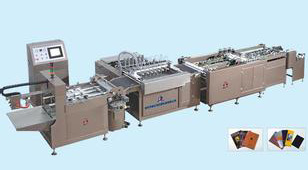

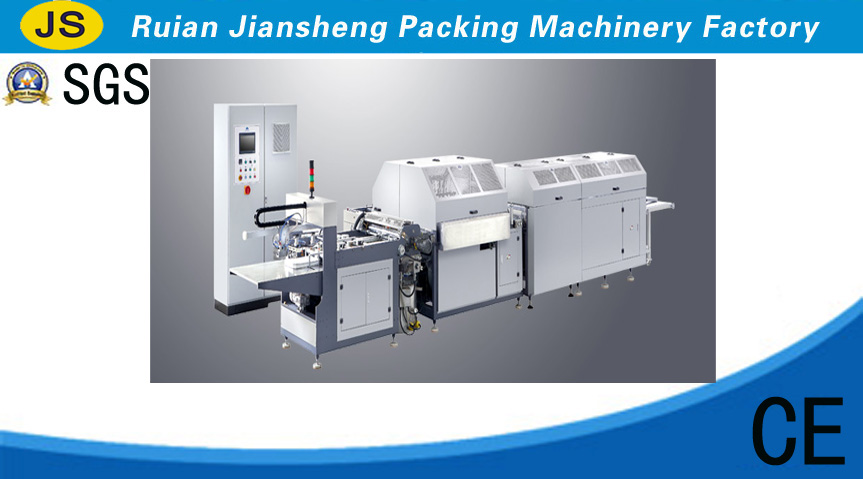

automatic case maker |
AFM450A |
AFM540A |
AFM600A |
|
1 |
paper size(A×B) |
MIN: 130×230mm MAX: 480×830mm |
MIN: 130×230mm MAX: 570×1030mm |
MIN: 130×230mm MAX: 630×1030mm |
|
2 |
paper thickness |
100~200g/m2 |
100~200g/m2 |
100~200g/m2 |
|
3 |
cardboard thickness(T) |
1~3mm |
1~3mm |
1~3mm |
|
4 |
finished product size(W×L) |
MIN: 100×200mm MAX: 450×800mm |
MIN: 100×200mm MAX: 540×1000mm |
MIN: 100×200mm MAX: 600×1000mm |
|
5 |
spine(S) |
10mm |
10mm |
10mm |
|
6 |
Folded paper size（R） |
10~18mm |
10~18mm |
10~18mm |
|
7 |
max quantity of cardboard |
6pieces |
6pieces |
6pieces |
|
8 |
precision |
±0.50mm |
±0.50mm |
±0.50mm |
|
9 |
production speed |
≦25sheets/min |
≦25sheets/min |
≦25sheets/min |
|
10 |
motor power |
5kw/380v 3phase |
5kw/380v 3phase |
5kw/380v 3phase |
|
11 |
heater power |
6kw |
6kw |
6kw |
|
12 |
machine weight |
3000kg/3200kg |
3500kg/3900kg |
3700kg/4200kg |
|
13 |
machine dimension |
L8200×W2200mm |
L9000×W2300mm |
L9000×W2400mm |
