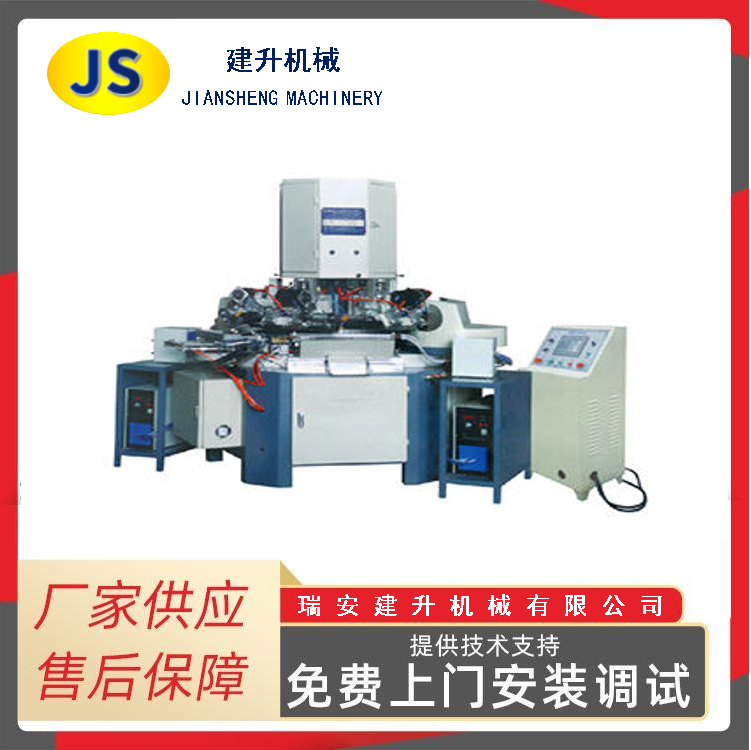

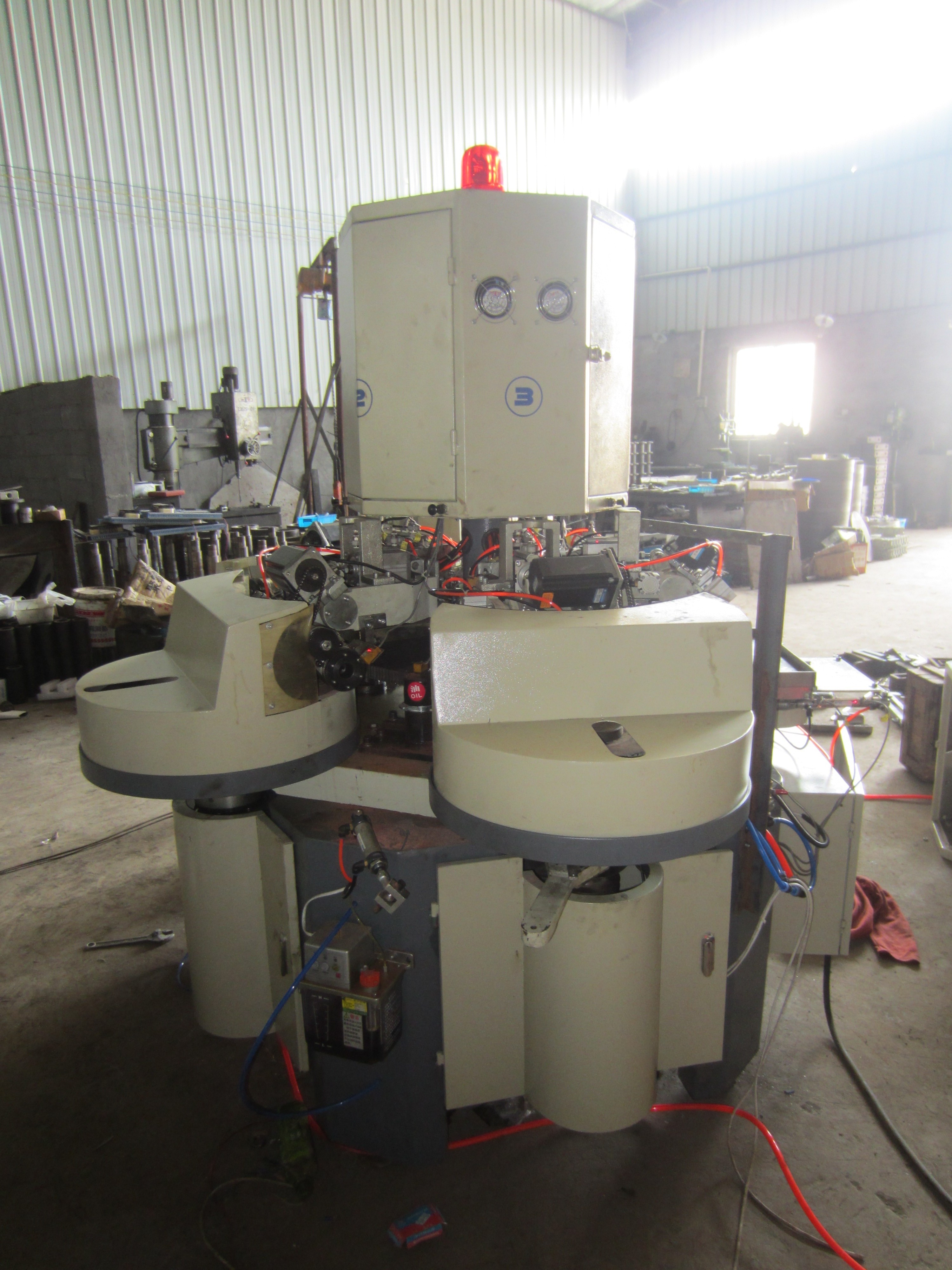

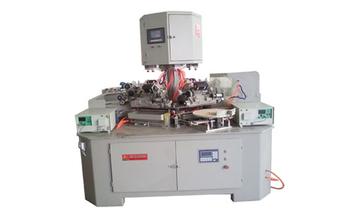

Model: GM-600
Machine technical parameters.
Equipment size 8.5X1.3X1.5m
Fixture specifications 900mm long (effective distance 860mm)
Size of rhinestones used 1.5-8mm (SS4-SS38)
Production efficiency Specific output and speed depends on the size of the bead blanks
Can grind and polish size range Diameter 1.5-8mm
Some of the production figures are as follows 6.7 sec/plate, 188,000 pcs/hour (2mm diameter bead blank)
7 seconds/plate, 175,300 pieces/hour (2.4 mm diameter bead blanks)
7.4 sec/plate, 106,400 pcs/h (3.2 mm diameter bead blanks)
Equipment power consumption 23 kWh/hour
Power supply voltage 380 volts, 3 phases, 60 hertz
Mechanical features and introduction.
1. The equipment is small in size, flexible and fast in turning, suitable for 2.0-8.0mm rhinestone beads also grinding and polishing processing (can produce 350-560 plates per hour).
2. Machine operation condition can be monitored and alarmed.
3. One person and multiple machine operation and supervision, the product from the material, preheating, on the clip, grinding and polishing, under the material in one automated operation, saving manpower and time, high efficiency.
4. Human-machine interface operation, convenient and simple.
5. High degree of automation of equipment, daily maintenance and repair is convenient and quick.
