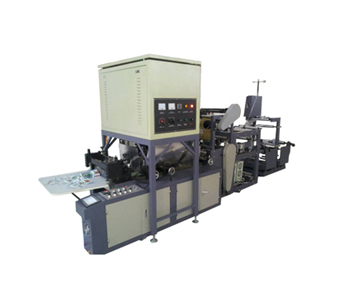

Automatic PVC bag making machine
Automatic PVC bag making machine Download Email Print this Page
Products Name :Automatic PVC bag making machine
Specifications
Features
1、Large and small batches can be adapted, shortening the changeover time and greatly improving production efficiency.
2、Easy to use, easy to operate, reducing the number of operators

3、Adopting advanced digital electric device and high precision and high material mechanical parts to ensure the durability

of the machinery and the accuracy of the quality of the products produced.

4、With automatic alarm stop, automatic temperature control, self-adhesive adhesive strip, counting and punching, electric eye tracking.


Use

This machine can produce garment bags, breathable bags, etc. with PVC as raw material. It adopts PLC touch screen to fully automatic

control operation, combined with high-frequency heat-combined hot press forming, stepping motor feeding, photoelectric tracking and fixing

 length, photoelectric correction device, with automatic counting, loading and unloading, high-frequency speed regulation and high stop function.

The finished product sealing effect is beautiful, high precision and high efficiency.


Machine technical parameters
Machine model: XK-P 600 XK-P 700, XK-P 800
Max. bag length :400mm、500mm、600mm
Max. bag width: 500mm, 600mm, 700mm
Total power: 15kw, 18kw, 20kw
Material thickness: 0.08-0.50mm, 0.08-0.50mm, 0.08-0.50mm
Material width :550mm、650mm、750mm
Voltage :380V、380V、380V
Machine speed :20-25pcs/min, 20-25pcs/min /20-25pcs/min
Machine size :6200*1700*1900mm、6200*1800*1900mm、6200*1900*1900mm
