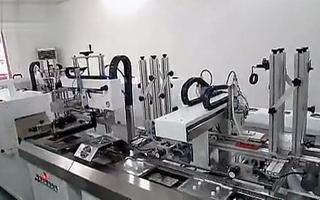

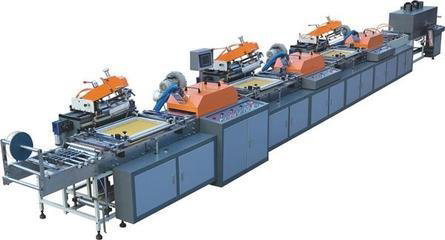

Automatic multi-color screen printing machine

Automatic multi-color screen printing machine Download Email Print this Page

Products Name :Automatic multi-color screen printing machine

Bottom

Return

Specifications

I. Scope of application
1. Printing type: flat screen printing.

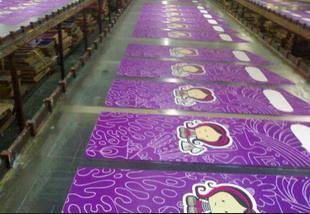

2. Printing range: cutting pieces: woven, knitted garments, pique, cutting pieces printing; sweaters, wool sweaters large format printing (printing and dyeing), direct printing of leather and artificial leather fabrics for bags; whole rolls: direct screen printing of PVC, PU, PP, PE and other film materials.
3. Printing materials: water pulp, glue pulp, all kinds of ink.
4. Wide range of application: manual running table can print the process, PW series table printing machine is also suitable, and better printing.
Automatic multi-color screen printing machine introduction.

Automatic multi-color screen printing machine is a combination of the company's many years of experience in the printing process and high-tech research of a model. Is currently the most representative of the printing industry, the new flat screen cut sheet printing machine, its performance to

meet the needs of various printing processes, namely, good operational stability, high precision, fast production speed, easy to operate, low mechanical failure rate, less maintenance, energy-saving direction designed and processed to fully meet the characteristics of multi-species multi-pattern printing

process. Relying on the industry, it is the choice of the printing industry, and is your business partner. According to different requirements can be customized water-based paste and oil-based ink dual-use printing machine.

I. Multi-functional, central control system. Printing each step of the production process, the use of large color touch screen operation function is intuitive and clear, very easy to use and easy to understand, any operator can quickly get started, without any operational training communication barriers.
Second, the special mechanism body, high precision, the overall stability of the machine performance, even in high-speed production to adapt to a variety of printing process requirements, and to ensure the printing accuracy.
Third, automatic positioning device, using imported printing guide belt driven by servo motor and encoder combination of automatic distance positioning, to ensure the accuracy of the printing set set color.
Fourth, fast printing speed, automatic scraping, automatic ink return device, scraper back to the ink knife pressure angle can be adjusted individually, printing without color difference. This kind of machine is printing machine, automatic washing device, the printing quality to improve the grade has considerable contribution.
V. Easy to change the plate and color, no need to seal the plate again when printing color change can save time to improve work efficiency, infrared positioning device can be adjusted at will, so that the operator quickly lock the edge distance more accurately.
Sixth, the machine control box, with a counter displayed on the touch screen, after printing a single can be cleared from a new calculation, can do printing measurement production control. Production tracking and efficiency statistics.

Automatic multi-color screen printing machine features.
1. man-machine interface, manual and automatic free choice.
2. All-round adjustable frame, fine adjustment of the screen and cleaning simple and quick.
3. Counter function and automatic control system, color touch screen, human-machine interface. A variety of operating methods, easy and flexible.
2. printing whole machine alarm function.
4. automatic water washing function.
5. scraper angle scraper printing speed can be adjusted individually.
6. laser line marker for precise positioning.
7. running process waiting time can be set freely.
8. conveyor belt pull distance can be adjusted arbitrarily for various sizes of printing.
9. The second elevation of the plate frame can be cleaned at any time without unloading the plate.
10. less labor, high output, saving human resources and wage costs.
11. The whole machine is safe to use and operate, except for the motor which is 380V, other electrical appliances of the machine are 24V.
Main components.
1. Frequency converter, PLC, seamless tension-free belt
3. Printing guide belt drive device: The main transmission of this machine adopts servo double motors, which can pull the belt with high precision and run smoothly, and the color set is accurate.
4. Interval positioning control device: This machine adopts servo transmission, the distance of transmission can be adjusted, for interval jumping printing, inserting plate edge, continuous printing and other printing methods can all be conquered.
5. Plate frame lifting system: the plate frame can be flattened twice to the person can wipe the plate, convenient to scrub the bottom of the plate. Avoid delaying production due to dismantling the plate.
6. Automatic cleaning system: water washing with scraper and brush roller, automatic cleaning belt surface cloth hair and residual printing paste, to ensure the quality of printing and substrate clean.
7. scraping printing device: pneumatic scraping brush and ink return completely independent control, printing movement synchronous guide belt connection device, scraping brush back to the ink can be freely selected.

Our commitment: our products are high-quality products, lifelong maintenance, under the premise of non-human damage, the quality of the product itself unconditional warranty for one year.
