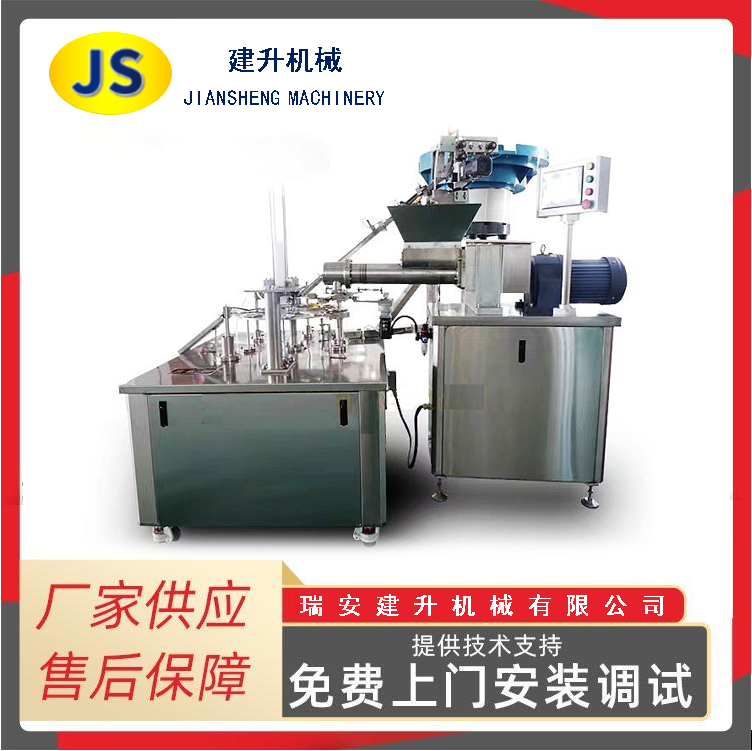

Automatic filling and capping machine

Automatic filling and capping machine Download Email Print this Page

Products Name :Automatic filling and capping machine

Bottom

Return

Specifications

The equipment automatically lower the cup, dispense, fill and cap. Suitable for: color clay, clay, play dough, slime clay and other paste materials.

Parameters.
Model：WHCJ-80、WHCJ-100
Efficiency: 70-90cup/min, 70-90cup/min
Error: <3%, <3%
Barrel size (inner diameter): 80mm, 100mm
Filling rate: 60%-95%, 60%-95%
Cup diameter: 40-80mm, 40-80mm
Power: 4.5kw, 5kw
Power supply: 220V/50HZ or 380V/50HZ, 220V/50HZ or 380V/50HZ
Total capacity: 800kg, 1100kg
Overall dimension: 2400*1800*1800mm, 2400*2200*1800mm
