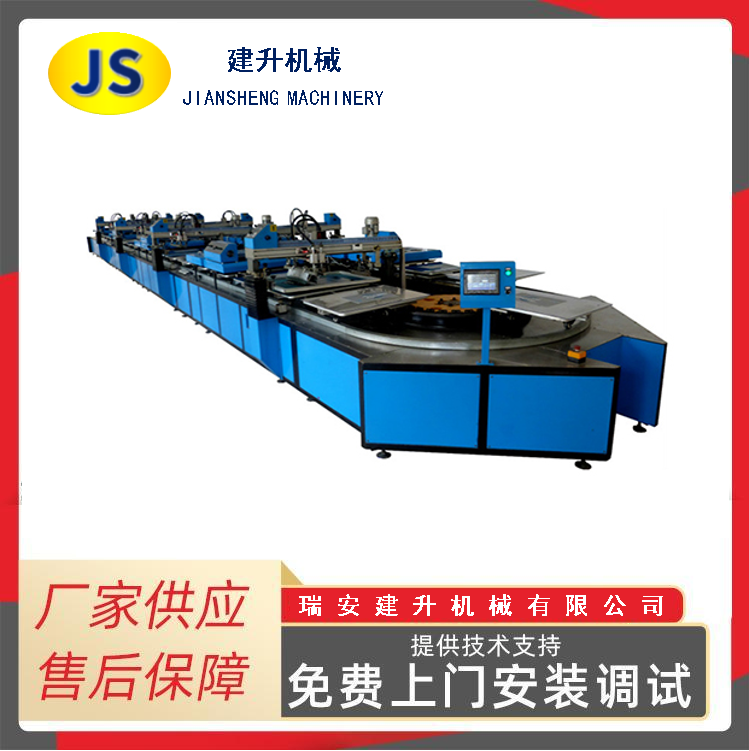

Products Name :Automatic clothes screen printing machine

Bottom

Return

Specifications

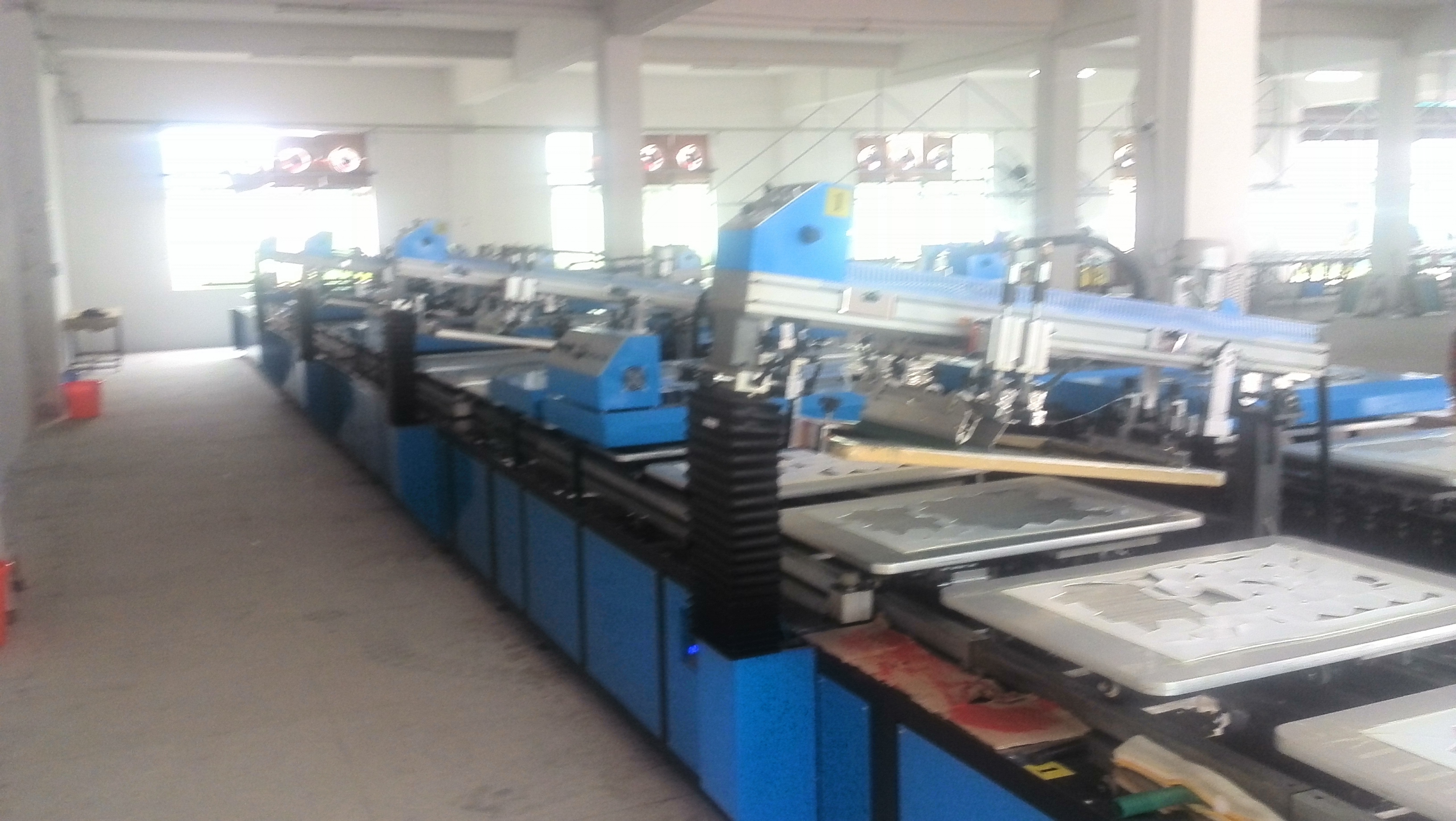

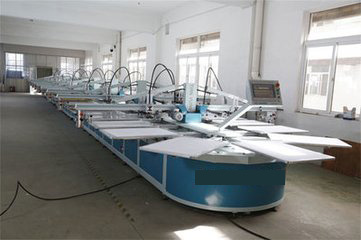

I. Introduction of the whole machine of TY printing machine.

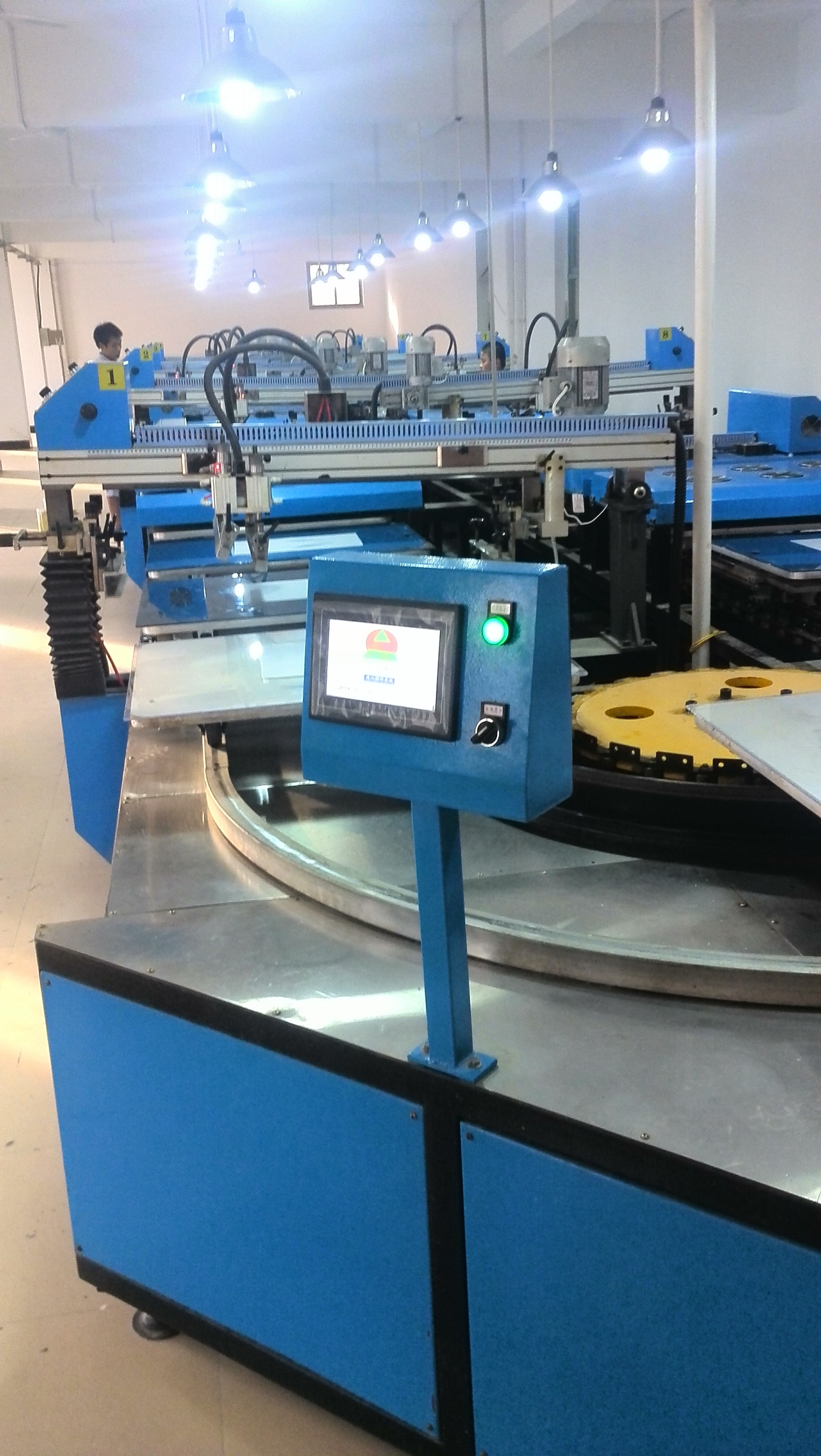

1. Chinese control touch screen human-machine interface, easy to understand the operation. The whole machine adopts PLC centralized control, scraping speed, running speed, machine speed can be set and adjusted by yourself, according to the operator's proficiency, you can choose your own mechanical stencil stay time. Fault self-test and alarm function, to understand the status of the equipment in time to make adjustments.
2. The host drive adopts imported high-precision servo drive with reducer motor to realize infinitely adjustable speed. Pneumatic components adopt domestic famous brands.

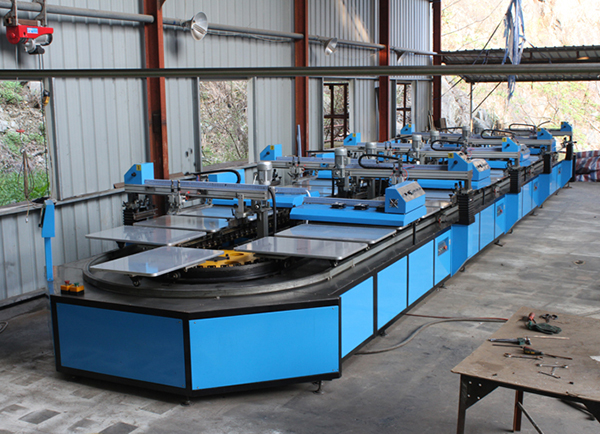

3. The equipment transmission station adopts chainless hard link and linear extra hard guide rail with our self-developed special slider, which improves the precision of transmission control, reduces the noise pollution in the production process and makes the synchronization between the active and auxiliary movable wheels more superior, thus ensuring the high precision printing quality. Reduce the load of the drive servo to improve its life and stability.

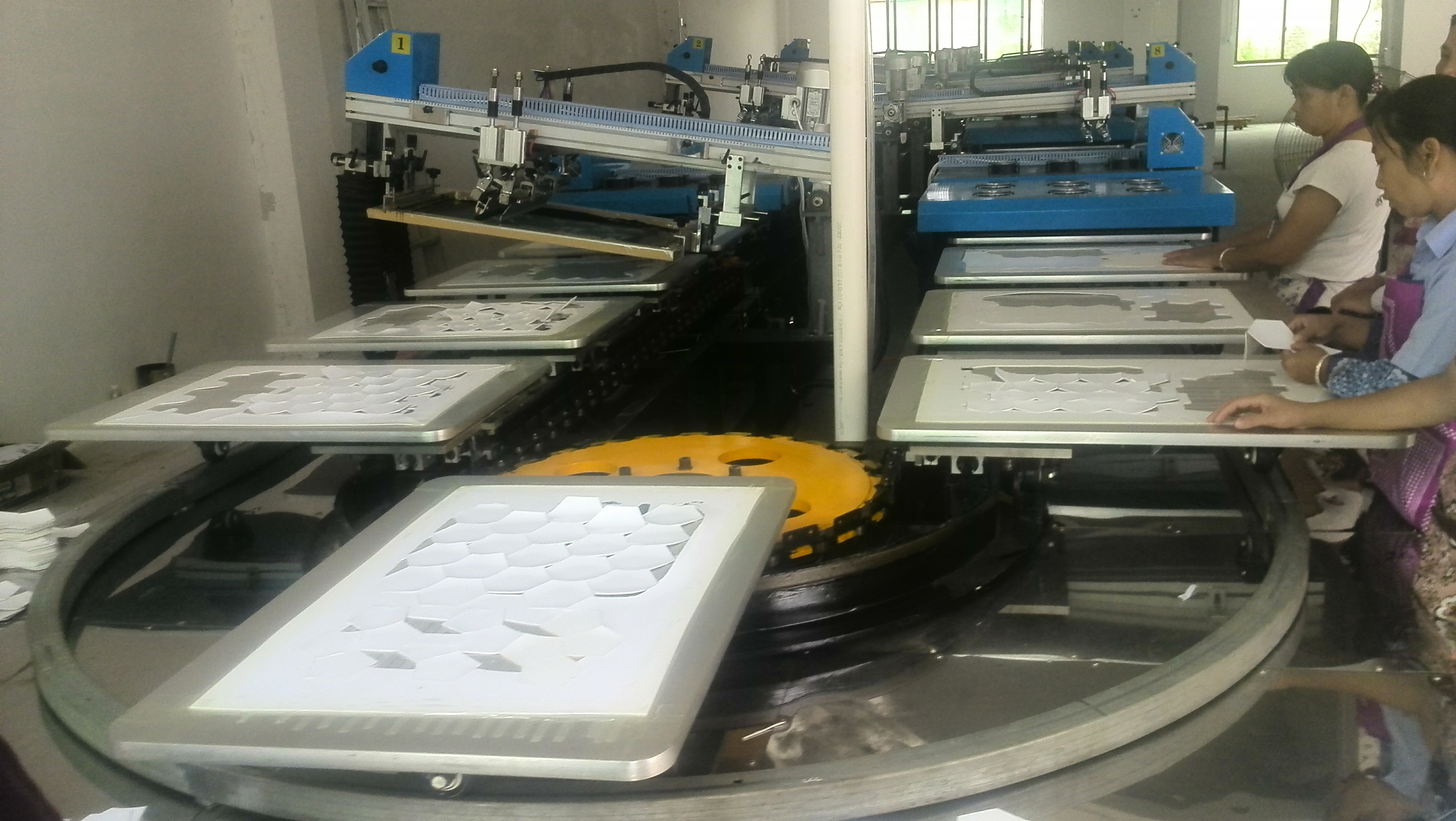

4. The working platform is made of aluminum honeycomb plate, which has a flat surface, easy to clean and not easy to deform. Another more significant advantage is that the honeycomb table absorbs heat and heats up faster and dissipates heat faster, thus reducing the phenomenon of dry stencil.
5. One machine with multiple functions, can be used as two (or more) at the same time the same or different colors, greatly improving the use of equipment and production efficiency.
6. The printing group and drying group adopt modular design, which can be expanded according to the demand of production capacity, reducing the repeated investment of equipment and facilitating the free upgrade of equipment.
7. The equipment table plate can be changed freely, which is convenient to use.
8. Unique table plate automatic fast locking system with center positioning to improve overprinting accuracy.
9. Convenient and fast plate setting system, reduce the time of plate setting, reduce the skill requirements of the employees (our company independently developed special screen plate fixture, the equipment can share the screen plate with the manual, the manual table plate on the good screen plate can be placed on the printing machine without the need to set the plate again).
10. Set the required number of production, to the number of mechanical automatic stop.
11. drying mode: infrared heating type (optional UV drying device).
13. Infrared alignment: convenient to lay the material.
14. The machine's unique features: can support proofing, small batch production.
Second, the printing machine seat independent operation introduced.
Head lift: manual head level lift
Squeegee forward / backward: squeegee can be manually moved forward and backward
Oil sealing: can choose to seal oil or not in the printing process
Platform operation: single machine can control the platform to move back and forth
Squeegee lift: manual squeegee lift control
Oil knife lift: oil knife manual lift control
Squeegee speed: Squeegee speed adjustment
Oil sealing speed: oil sealing speed adjustment

Main technical parameters.

Note: This parameter is a printing head corresponding to four plates
Model	TY5070-6	TY5070-8	TY5070-10	TY5070-12	TY5070-14	TY5070-16
Number of plates	30	38	46	54	62	70
Number of printing colors	6	8	10	12	14	16
Number of dryer	6	8	10	12	14	16
Use voltage	380V
Machine power (without dryer)	5.5KW	7.5KW	11KW	15KW	18KW	21KW
Printing head motor power (each)	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW
Dryer power	12KW
Table size	600×850mm
Printing area	500x700mm
Overall dimension	12800x2900x1600mm	15600x2900x1600mm	18400x2900x1600mm	21200x2900x1600mm	24000x2900x1600mm	26800x2900x1600mm
Note: This parameter is a printing head corresponding to five plates
Model
TY5070-6	TY5070-8	TY5070-10	TY5070-12	TY5070-14	TY5070-16
Number of plates	36	46	56	66	76	86
Number of printing colors	6	8	10	12	14	16
Number of dryer	6	8	10	12	14	16
Use voltage	6	8	10	12	14	16
Machine power (without dryer)	380V
Printing head motor power (each)	5.5KW	7.5KW	11KW	15KW	18KW	21KW
Dryer power	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW
Table size	12KW
Printing area	600×850mm
Overall dimension	500x700mm
Model	15200x2900x1600mm	18800x2900x1600mm	22400x2900x1600mm	26000x2900x1600mm	29600x2900x1600mm	33200x2900x1600mm
Note: This parameter is a printing head corresponding to six plates
Model	TY5070-6	TY5070-8	TY5070-10	TY5070-12	TY5070-14	TY5070-16
Number of plates	42	54	66	78	90	102
Number of printing colors	6	8	10	12	14	16
Number of dryer	12	16	20	24	28	32
Use voltage	6	8	10	12	14	16
Machine power (without dryer)	380V
Printing head motor power (each)	5.5KW	7.5KW	11KW	15KW	18KW	21KW
Dryer power	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW
Table size	12KW
Printing area	600×850mm
Overall dimension	500x700mm
Model	17600x2900x1600mm	22000x2900x1600mm	26400x2900x1600mm	30800x2900x1600mm	35200x2900x1600mm	39600x2900x1600mm
Note: This parameter is a printing head corresponding to seven plates
Model	TY5070-6	TY5070-8	TY5070-10	TY5070-12	TY5070-14	TY5070-16
Number of plates	48	62	76	90	104	118
Number of printing colors	6	8	10	12	14	16
Number of dryer	12	16	20	24	28	32
Use voltage	12	16	20	24	28	32
Machine power (without dryer)	380V
Printing head motor power (each)	5.5KW	7.5KW	11KW	15KW	18KW	21KW
Dryer power	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW
Table size	12KW
Printing area	600×850mm
Overall dimension	500x700mm
Model	20000x2900x1600mm	25200x2900x1600mm	30400x2900x1600mm	35600x2900x1600mm	40800x2900x1600mm	46000x2900x1600mm
Note: This parameter is a printing head corresponding to eight plates
Model	TY5070-6	TY5070-8	TY5070-10	TY5070-12	TY5070-14	TY5070-16
Number of plates	54	70	86	102	118	134
Number of printing colors	6	8	10	12	14	16
Number of dryer	12	16	20	24	28	32
Use voltage	18	24	30	36	42	48
Machine power (without dryer)	380V
Printing head motor power (each)	5.5KW	7.5KW	11KW	15KW	18KW	21KW
Dryer power	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW
Table size	12KW
Printing area	600×850mm
Overall dimension	500x700mm
Model	22400x2900x1600mm	28400x2900x1600mm	34400x2900x1600mm	40400x2900x1600mm	46400x2900x1600mm	52400x2900x1600mm
Note: This parameter is a printing head corresponding to nine plates
Model	TY5070-6	TY5070-8	TY5070-10	TY5070-12	TY5070-14	TY5070-16
Number of plates	60	78	96	114	132	150
Number of printing colors	6	8	10	12	14	16
Number of dryer	18	24	30	36	42	48
Use voltage	18	24	30	36	42	48
Machine power (without dryer)	380V
Printing head motor power (each)	5.5KW	7.5KW	11KW	15KW	18KW	21KW
Dryer power	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW	0.37KW
Table size	12KW
Printing area	600×850mm
Overall dimension	500x700mm
Model	24800x2900x1600mm	31600x2900x1600mm	38400x2900x1600mm	45200x2900x1600mm	52000x2900x1600mm	58800x2900x1600mm
