Uses.

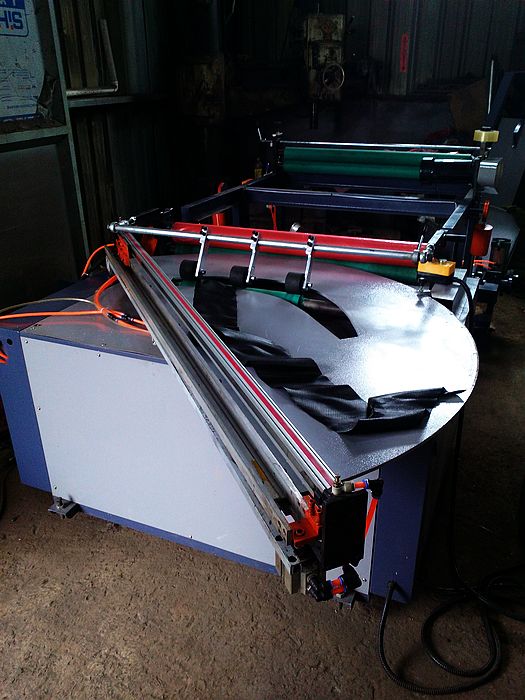

The machine is suitable for cutting carbon fiber cloth, non-woven fabric, stickers, paper, film, PVC, aluminum foil, medallion and other roll materials, the cutting angle can be adjusted arbitrarily. If you cut carbon fiber cloth can first laminate and then peel off the film, so as to avoid slipping and hurting the fiber cloth.
Performance and characteristics.
1、Computer control, fixed length setting.
2、Automatic counting, sound and light alarm.
3, photoelectric tracking control, accurate cut length, automatic shutdown for lost mark.
Main technical parameters.
Model: RHQ-1000
Max. cutting width: 950mm
Max. cutting length: 1500mm
Max. cutting speed: 30m/min
Total power: 2.8Kw
Machine weight: 800kg
Overall dimension: L3000×W1100×H1200mm
